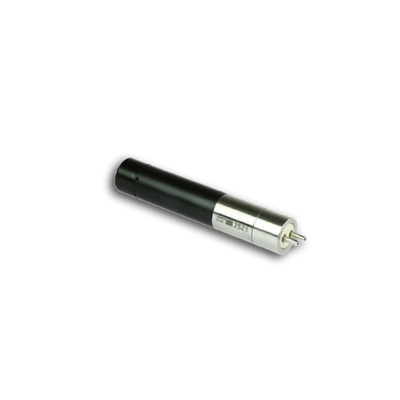

HNP-Mikrosysteme - Model MZR - 2521 -Compact Low Pressure Micro Annular Gear Pump
The compact micro annular gear pump mzr-2521 of the low pressure series is an innovative pump concept for use in analytical instrumentation. The pump generates a low pulsation, highly precise flow featuring low shear stress. It dispenses at a high precision the lowest volumes in microliter range. Due to its compact design small dimensions have been achieved. The pump is suitable for dosage of low viscosity liquids such as deionized water, watery solutions, methanol, solvents, oil and lubricants.
Most popular related searches
external gear pump
gear pump
tungsten carbide
in vitro diagnostic
analytical instrument
in vitro
deionized water
laboratory automation
analytical pump
water deionizer
- Compact dimensions diameter 13 mm, length 75 mm
- Small dosage volumes, high flow rates smallest volume 0.25 µl, flow up to 9 ml/min
- High dosage precision precision CV 1 % at low volumes
- Long service life wear-resistant tungsten carbide or ceramics
- Low pulsation delivery, low shear stress rotary micro annular gear technology
- Analytical instrumentation
- Fuel cells
- Laboratory automation
- In vitro diagnostics
- Flow rate: 0.15 – 9 (min. 0.0015 *) ml/min
- Smallest dosage volume: 0.25 µl
- Displacement volume: 1.5 µl
- Differential pressure range: 0 - 1.5 bar (22 psi)
- Maximum inlet pressure: 1 bar (15 psi)
- Liquid temperature range: -20 ... +60 °C (-4 ... +140 °F)
- Viscosity range: 0.3 – 100 (max. 1,000 *) mPas
- Precision CV: 1 % (Coefficient of variation CV)
- Velocity range: 100 – 6,000 (min. 1 *) rpm
- Fluid connection: slip fittings with outside diameter 2 mm optional: manifold assembly M2.1
- Wetted parts: stainless steel 316L, ceramics, tungsten carbide Ni based, epoxy resin, optional: alloy C22 (2.4602) instead of stainless steel, ceramics instead of tungsten carbide; shaft seal: graphite-reinforced PTFE, stainless steel 316L, optional: alloy C276 (2.4819) instead of stainless steel; static seals: FPM, optional: EPDM, FFPM
- Motor: DC-motor with graphite brushes, assigned power rating 3 W, nominal voltage 18 V, digital magnet encoder 16 counts per turn
- Electrical connection: 10-pole connector
- Dimensions (L x W x H): Ø 13 mm, length 75 mm
- Weight: approx. 50 g (manifold assembly approx. 65 g)
Remarks: * depending on accessories, Customized solutions on request
