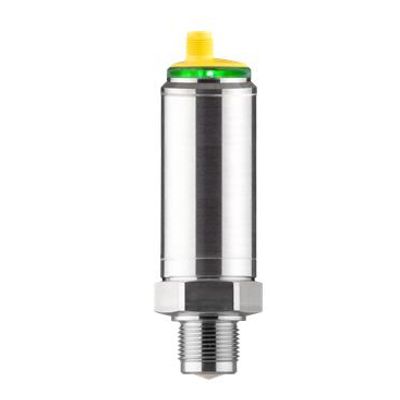

VEGAPULS - Model 42 -Compact Radar Sensor for Continuous Level Measurement
For simple to moderate measurement tasks in factory automation. Application area: From ¾ thread", universal connection G1" for hygiene adapter, three-wire: IO-Link, PNP/NPN, 4 ... 20 mA (active), hygiene approval, coloured 360° status display. VEGAPULS 42 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple to moderate applications. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock-keeping and perfectly fulfils the requirements for hygienic processes in the food, beverage and pharmaceutical industries. With IO-Link, it offers continuous digital data transmission.
- Coloured 360° status display, adjustable
- Easy integration into control systems through IO-Link communication
- Maintenance-free operation due to non-contact 80 GHz radar technology
Level measurement and point level detection in the supply tank of the filling machine
To the applicationLevel measurement in pH value regulation
To the applicationLevel measurement and point level detection in the filling machine
To the applicationLevel measurement and point level detection in the tomato pulper
To the application- 15 m [Meter - Foot]
- -40 ... 130 °C [°C - °F]
- -1 ... 16 bar [Bar - kPa - psi]
- ± 2 mm
- 80 GHz
- ≥ 12°
- PTFE
- 316L
- PEEK
- ≥ G¾, ≥ ¾ NPT
- Universal connection G1" for hygiene adapter
- EPDM
- FKM
- Plastic
- Stainless steel
- IP66/IP67
- IP66/IP67/IP69
- Three-wire (PNP/NPN, 4 … 20 mA)
- IO-Link
- -40 ... 70 °C
- 3A
- EHEDG
- FDA
- Smartphone / Tablet / PC via Bluetooth
- PC, PACTware and DTM, IODD
- Graphic-capable clear text indication with background lighting
- 360° status display
