VEGA Grieshaber KG products

All-round radar measuring device - VEGAPULS 6X combines the best of the previous VEGAPULS 60 series. VEGAPULS 6X is a universal sensor for continuous level measurement of liquids and bulk solids under all process conditions. Due to its application-oriented configuration and setup, VEGAPULS 6X offers a reliable and economical solution for all level applications. Due to its variable antenna systems, it ensures maintenance-free operation in all applications.

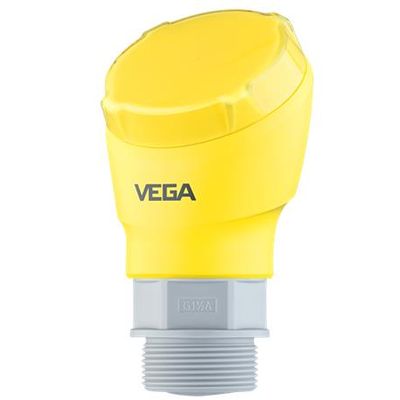

For simple measuring tasks, plastic housing IP66/IP67, Type 4X. Application area:  4 ... 20 mA output, measuring range up to 8 m, accuracy ±5 mm. VEGAPULS 11 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.

For standard measuring tasks, plastic housing IP66/IP67, Type 4X. Application area: 4 ... 20 mA/HART output, measuring range up to 15 m, accuracy ±2 mm, Ex approval. VEGAPULS 21 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.

For standard measuring tasks, plastic housing IP66/IP67, type 4X, display. Application area: 4 ... 20 mA/HART output, measuring range up to 15 m, accuracy ±2 mm, Ex approval, on-site display and 3-button operation. VEGAPULS 31 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.

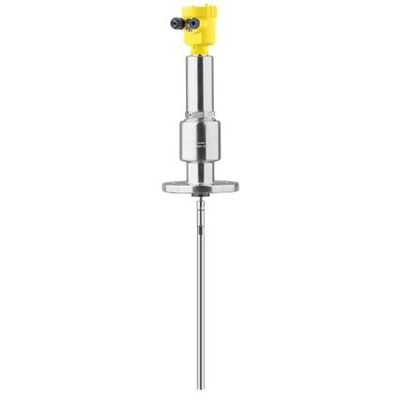

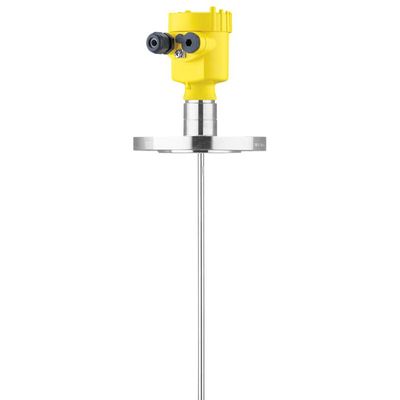

Universal TDR sensor for liquids of all kinds. Application area: Cable, rod or coaxial sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings – also in standpipes or bypass pipes. The VEGAFLEX 81 level sensor measures maintenance-free all kind of liquids. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 81 is the economical solution for various level and interface measurements.

For aggressive media or extremely high hygienic requirements. Application area: PFA coated or polished sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings. The VEGAFLEX 83 level sensor measures maintenance-free agressive liquids or liquid media with highest hygienic requirements. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 83 is the economical and ideal solution for your application.

For the most extreme process conditions. Application area: Cable, rod or coaxial sensor. Its robust, mechanical design and the second process seal, the Second Line of Defense, protect the sensor for demanding measurement tasks. Process temperature: -196 ... 450° C; process pressure: -1 … 400 bar. The VEGAFLEX 86 level sensor measures maintenance-free all liquids under extreme pressure and temperature conditions. Even in applications with buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. In saturated steam applications, a special reference probe ensures a density-independent measurement. The VEGAFLEX 86 offers an economical level and interface measurement for your application.

Measures liquids up to 5 m and bulk solids up to 2 m away. Application area: Extensive selection of electronics, housings, approvals. Process fittings: G1½ or 1½ NPT. The VEGASON 61 is an ultrasonic sensor for continuous level measurement of liquids or bulk solids. Typical applications are the measurement of liquids in storage tanks or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or open containers. The non-contact measuring principle is independent of product features and allows a setup without medium. For this instrument, new radar sensors with connection housing VEGAPULS 11, 21 or 31, or radar sensors with fixed connected cable VEGAPULS C 11, C 21, C 22 or C 23 are available as alternative.

Measures liquids up to 8 m and bulk solids up to 3.5 m away. Application area: Extensive selection of electronics, housings, approvals. Process fittings: G2 or 2 NPT. The VEGASON 62 is an ultrasonic sensor for continuous level measurement of liquids and bulk solids. Typical applications are the measurement of liquids in storage vessels or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or silos. Application areas can be found in all industries. The non-contact measuring principle is unaffected by product features and allows a setup without medium. For this instrument, new radar sensors with connection housing VEGAPULS 11, 21 or 31, or radar sensors with fixed connected cable VEGAPULS C 11, C 21, C 22 or C 23 are available as alternative.
