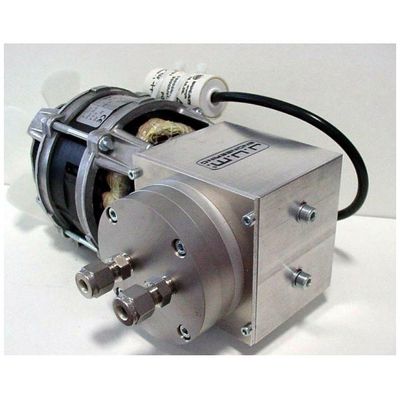

J.U.M. - Model 2812D -Compact Sample Pump

The pump drive mechanism and motor have been designed for continuous, smooth and low vibration, silent and long lasting operation.

• Transferring air, vapors and gasses pure and clean
• No contamination of the media due to oil free operation
• Long product life
• Highly leak tight: 6 X 10-3 mbar X 1/s
• Very low vibration, very quiet and smooth running
• Optional temperature resistant version up to 200 deg.C
• Can be operated and mounted in any position

• Typical applications are transferring and compressing air and other gasses between +5 deg.C and +80 degC
• Operating ambient temperature from +5 deg.C to +45 degC
• This pump does not start against pressure or vacuum. Inlet and outlet lines need to be atmospheric pressure.
• This pump is built IP-00, general purpose and can only be used in an appropriate enclosure. Pump cannot be used in an area with a risk of explosion

• Max. 12 liter/ min. @ free flow
• Max. pressure: 3.0 bar (g)
• Diaphragm and Valves: FPDM
• Head material stainless steel 316S

• Compressor
• Sample pump for Continuous Emissions Monitoring Systems
• Sample pump for stack emissions

Temperature resistant version available up to 200 deg.C

• 230V/50Hz, 0,5A, 1340 UPM
