29 products found
J.U.M. Engineering GmbH Products
-
Aerosol Can Leak Detector
J.U.M."s fast leak analyzer technology is exclusively used in Bautz Engineering"s Family of Micro Leak Detectors for filled aerosol cans. Our sensing technology drastically improves the current water bath system for detecting leaks faster and more accurately on aerosol filling lines during the manufacturing process. Our leak detectors are in full compliance with all current EU and UN regulations. They lead to significant gains in the production efficiency and improve health and safety and greater risk of management in the transportation of aerosols. They have high potential to be applied across very many aerosol production lines worldwide.
-

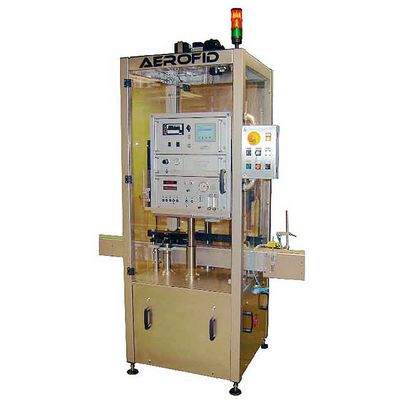

AeroFid - Model 60 - Automatic Micro Leak Detector for Filled Aerosol Cans
The AeroFid-60 tests up to 80 cans per minute. This compact, over the conveyor machine houses the high speed leak analyzer, the control panel with touch screen display and the zero air generator. Our long standing, fast responding Model 22B hydrocarbon propellant sensor automatically extracts one sample at a time from the head and valve area of each individual aerosol can. The cans freely scroll through sensing area. Immediately after a leak was ...
-
AeroFid - Model 100 - Automatic Micro Leak Detector for Filled Aerosol Cans
The AeroFid-100 tests up to 120 cans per minute at a footprint of less than 1 sqare meter. This compact, over the conveyor machine houses the high speed leak analyzer, the control panel with touch screen display and the zero air generator. Our long standing, fast responding Model 22B hydrocarbon propellant sensor automatically extracts one sample at a time from the head and valve area of each individual aerosol can. Jam controlled by a star wheel or ...
-
AeroFid - Model 200 - Automatic Micro Leak Detector for Filled Aerosol Cans
The AeroFid-200 tests up to 250 cans per minute also at a footprint of less than 1 sqare meter. This compact, over the conveyor machine houses the high speed leak analyzer, the control panel with touch screen display and the zero air generator. Our long standing, fast responding Model 22B hydrocarbon propellant sensor automatically extracts one sample at a time from the head and valve area of each individual aerosol can. Jam controlled by a feed worm, ...
-
Heated FID Analyzers - FIDs with Backpurge Filter
All heated FID THC and NMHC analyzers described in here are equipped with our permanent internal 2 micron stainless sample filter. For cleaning and regenerating this filter compressed air or nitrogen must be supplied applied for cleaning and regeneration. Cleaning typically takes just a few seconds. Our proprietary back purge feature not only cleans the internal sample filter; When a sample line is attached between the sampling probe and the analyzer, this line is automatically cleaned too with every back purge process. In most cases, no probe filter is needed. Back purging the sample filter can be automated with our available timing device.
-

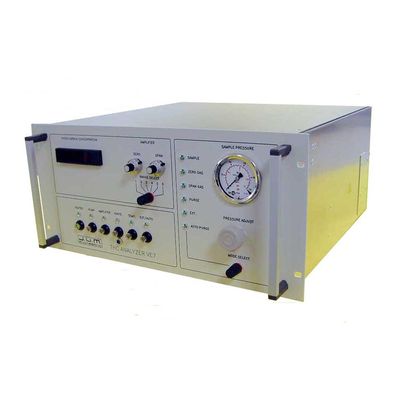

J.U.M. - Model VE7 - High Temperature Total Hydrocarbon Analyzer
Our model VE7 heated FID is being manufactured since 1974 and is the first heated THC analyzer ever built with a permanent back purge sample filter. It is still the most liked heated FID throughout the stack testing community due to its legendary ruggedness, forgivingness and long standing accuracy and sensitivity. The VE7 belongs to the very first total hydrocarbon analyzers being officially certified for compliance in Europe. In the ...J.U.M. - Model 3-200 - Portable High Temperature Total Hydrocarbon Analyzer
Our transportable model 3-200 fully heated FID is successfully used throughout international markets for over 30 years. Also among other portable gas FIDs, the 3-200 It is the first ever built transportable fully heated FID using our proprietary back purge sample filter. It is widely distributed throughout the industry and the stack testing community and is much liked for its ruggedness, high accuracy, sensitivity and ...

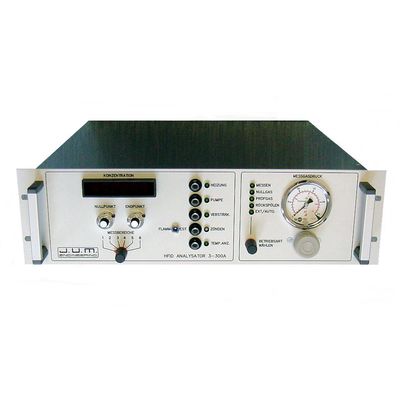

J.U.M. - Model 3-300A - High Temperature Total Hydrocarbon Analyzer
The 3-300A heated FID was designed in the early 80's as a space saving alternative to our VE7. Also the 3-300A was a "first" in the industry due to its sample filter back purge feature. It is also a very much liked 19" rack mount heated FID throughout the stack testing community and well known for its ruggedness, forgivingness and long standing accuracy and sensitivity. The 3-300A is fully identical to the VE7 and 3-200 and has been ...
J.U.M. - Model 109A - 109L - Heated Non Methane/ Methane/ Total Hydrocarbon FID Analyzer
The J.U.M 109L is a heated FID analyzer to continuously and simultaneously measure the Methane concentration, the Total Hydrocarbon concentration and the Non Methane concentration within a gaseous sample. The 109L is a table top or 19 inch rack mount Heated FID analyzer for the NMHC measurement in ambient air, exhaust gases from a combustion process e.g. stack emissions, from any type of an industrial vent, from an internal combustion ...
Heated FID Analyzers - Speciality Heated FID`s

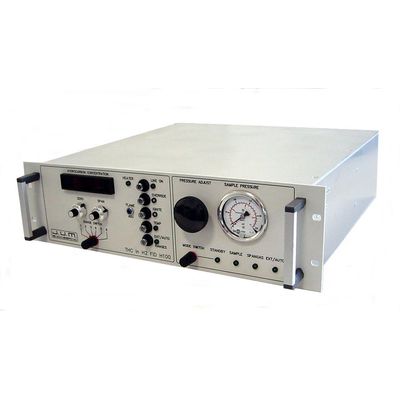

J.U.M. - Model H100 - Trace Hydrocarbon in Hydrogen FID-Analyzer
Our HFID Model H100 is a compact heated FID analyzer for high purity hydrogen applications. The H100 measures low trace total hydrocarbon concentration in Hydrogen. For fastest response and highest accuracy except the pressure regulator all components in contact with sample are housed in a 190 deg Celsius heated oven.. The Model H100 is ideally suited for the detection of very low traces of hydrocarbons in pressurized ...
J.U.M. - Model VE572 - Sequencing 2-Channel, Heated Total Hydrocarbon Analyzer
The HFID Model VE572 is a reliable and rugged Dual Channel Sequencing heated total hydrocarbon analyzer for low drift, high accuracy, sensitivity and stability. It uses our time proven hydrogen flame ionization detector (FID) in a heated oven to prevent the loss of high molecular weight hydrocarbons and to provide reliable performance in the analysis of high concentrations down to trace levels of THC -contaminants in high purity ...
J.U.M. - Model 5-100 - High Temperature Total Hydrocarbon Analyzer
The J.U.M. Engineering HFID Model 5-100 is a compact 19" rack mount or table top heated total hydrocarbon analyzer for high accuracy, sensitivity and stability for pressurized samples with conventional sample back pressure ...
Heated FID Analyzers - Sampling Accessories
PreFilter - Model VE 112 - All Heated Sample Filter & Interface Analyzer
The VE 112 is an efficient, all heated, low pressure drop sample filter and interface for removing solids from a gaseous sample and supplying sample to up to 5 gas analyzers. It utilizes a permanent all stainless steel 2 micron mesh filter and all stainless steel valve in a thermostatically controlled oven to prevent the loss of high molecular weight hydrocarbons or condensation of water. The sample filter is to be cleaned by high ...
J.U.M. - Model VE 222 - All Heated 2-Point Prefilter /Sample Sequencer
The Model VE 222 is an efficient, all heated and low pressure drop 2-stream sample sequencer, filter and interface for removing solids from two gaseous sample streams. The Model VE 222 utilizes two independent permanently installed all stainless steel mesh sample filters and two independent all stainless steel sample valves in a thermostatic controlled oven to prevent the loss of high molecular weight hydrocarbons or condensation of ...
J.U.M. PreFilter - Model VE 112WP - Wall Panel Mount Heated Sample Filter and Interface
The VE 112WP is the wall or panel mount version of our time proven VE112 heated sample filter and interface. Can be mounted in a separate NEMA 4 type housing or the system with all analyzers and sample cooler. With our unique sample back purge system, typically no sample filter at the stack probe is needed. During back purge not only the internal sample filter is cleaned, ...
J.U.M. - Model 108 - High Temperature Sample Diluter
The Model 108 dilutes an introduced sample gas in a 1:10 (standard), or a 1:100 (optional) dilution rate to allow the linear measurement of hydrocarbon concentrations above several thousand ppm up to 10% and above. The sample injection method is used in this 190 deg.C heated sample diluter for fast response and improved zero and span stability of a hydrocarbon measurements. The Model 108 is also used to minimize negative effects due ...
J.U.M. - Model TJ 100 - Heated Sample Line
The Model TJ 100 is a Heated Sample Line especially designed for Emissions Applications where hydrocarbons are to be measured. To prevent the forming of hydrocarbon memory effects, (hang up), the end caps are heat resistant to up to 200 deg.C. This allows the sample line to be coupled inside an oven of a heated sample filter and heated FID analyzers. A flame resistant PVC coating over a rugged metal flex tubing is used for outer ...
J.U.M. - Model TF 602 - External Digital Temperature Controller
The TF 602 is an external digital temperature controller especially designed for our TJ 100 heated sample line. It is housed in a rugged water protected GFK ...
J.U.M. - Model 2812D - Compact Sample Pump
The 2812D is a very compact sample pump. It is made of 316 stainless steel to withstand the corrosive gasses as they can become present in a typical stack gas emission test. The drive mechanism is designed for a very smooth, low vibration, silent and continuous operation. The pump drive mechanism and motor have been designed for continuous, smooth and low vibration, silent and long lasting ...
J.U.M. - Model 2825PD - Compact Compressor or Sample Pump
The 2825PD is a very compact compressor or sample pump. The two pumping modules are made of 316 Stainless Steel with aluminum heads as a compressor or made from 316S stainless steel. The dual head design provides a high medium flow of approx. 25 liter per minute when configured parallel. Both pump modules can also be used as used as individual dual or high flow sample pump. In the all stainless version it withstands normal corrosive ...
J.U.M. - Model 2812D-HT - Compact High Temperature Sample Pumps
The 2812D-HT is a very compact, High Temperature Sample Pump. All parts which come in contact with sample are made of 316 stainless steel to withstand corrosive gasses as they can become present in standard stack gas emission. The drive mechanism has been designed for a very smooth, low vibration, continuous and silent operation. The pump heads withstand operating temperatures of up to 200 deg. C. This pump has been designed to be ...
Heated FID Analyzers - Gases and Fuel Gas Supply
J.U.M. - Model HB-SC-50 Liter - FID Hydrogen Fuel Cartridge
The HB-SC-50 liter Hydrogen Fuel Cartridge is designed to be used as a standard storage for our portable FID based instrument and to act as a back up hydrogen source at room temperature. This hydrogen storage system is based on the latest achievements in solid metal hydride technology of AB5-type alloys as well as on unique techniques of alloy loading. It allows to store and release the gas at ambient temperature and at designed pressure range from 1.0 ...
Standard Heated FID Emissions FID Analyzers
All heated FID THC and NMHC analyzers described in here are equipped with our proprietary sample filter which is housed inside of the heated oven at 190°C. The filter cartridge has a 2 micron filter rating. Changing the filter cartridge is very simple and no special tools are required.
J.U.M. - Model 3-500 - Low Cost Heated Total Hydrocarbon FID Analyzer
The J.U.M Heated Total Hydrocarbon Analyzer Model 3-500 FID is our lowest cost alternative to continuously measure the total concentration of hydrocarbons within a gaseous sample. This can be ambient air, exhaust gases from a combustion process e.g. stack emissions, from any type of an industrial vent, from an internal combustion engine, or from any other emission containing hydrocarbons. The 3-500 is based on our time proven 300A FID platform of which ...
J.U.M. - Model 3-600 - Heated Total Hydrocarbon FID Analyzer
The J.U.M Heated Total Hydrocarbon Analyzer Model 3-600 FID is another low cost alternative to continuously measure the total concentration of hydrocarbons within a gaseous sample. This can be ambient air, exhaust gases from a combustion process e.g. stack emissions, from any type of an industrial vent, from an internal combustion engine, or from any other emission containing hydrocarbons. The 3-500 is built on our time proven 300A FID platform of ...

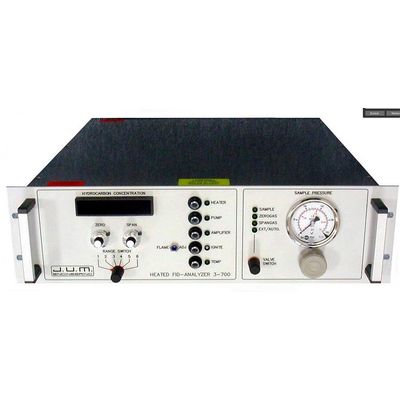

J.U.M. - Model 3-700 - Heated Total Hydrocarbon FID Analyzer
The J.U.M Heated Total Hydrocarbon Analyzer Model 3-700 FID is designed to be installed directly upstream of a FTIR analyzer (e.g. Gasmet) to continuously measure the total concentration of hydrocarbons within a gaseous sample. All controls which allow to calibrate the FTIR or FID individually are built in. Sources can be ambient air, exhaust gases from a combustion process e.g. stack emissions, from any type of an industrial vent, from an internal ...
J.U.M. - Model 3-800 - Portable Transportable Heated Total Hydrocarbon Analyzer
The J.U.M 3-800 Portable Heated Total Hydrocarbon Analyzer is a heavy duty FID analyzer to continuously measure the total concentration of hydrocarbons within a gaseous sample. This can be ambient air, exhaust gases from a combustion process e.g. stack emissions, from any type of an industrial vent, from an internal combustion engine, or from any other emission containing hydrocarbons. The 3-800 fully complies with ...
J.U.M. - Model 3-900 - Portable Transportable Heated FID THC / Methane FID Analyzer
The J.U.M 3-900 Portable Heated Methane Only and Total Hydrocarbon Analyzer is a heavy duty FID analyzer to continuously measure methane only or the total hydrocarbons to determine the non methane hydrocarbon concentration within a gaseous sample . This can be ambient air, exhaust gases from a combustion process e.g. stack emissions, from any type of an industrial vent, from an internal combustion engine, or from any other emission ...
J.U.M. - Model OVF-3000 - Portable Light Weight Heated FID THC Analyzer
The J.U.M OVF-3000 Portable Heated Total Hydrocarbon Analyzer is a light weight, over the shoulder portable heated FID analyzer to continuously measure the total concentration of hydrocarbons within a gaseous sample. This can be ambient air, exhaust gases from a combustion process e.g. stack emissions, from any type of an industrial vent, from an internal combustion engine, or from any other emission containing hydrocarbons. The standard OVF-3000 is ...
J.U.M. - Model W600 - Wall or Panel Mount Heated FID THC Analyzer
The J.U.M W600 Heated Total Hydrocarbon Analyzer is a very compact wall or panel mount heated FID analyzer to continuously measure the total concentration of hydrocarbons within a gaseous sample. This can be ambient air, exhaust gases from a combustion process e.g. stack emissions, from any type of an industrial vent, from an internal combustion engine, or from any other emission containing hydrocarbons. The W600 can easily be wall or panel ...
J.U.M. - Model 603 - Heated FID Total Hydrocarbon Analyzer
The HFID Model 603 is a competitively priced, digitally controlled self extracting, heated total hydrocarbon analyzer for high accuracy, sensitivity and long term stability. It can be used in a 19' rack or as a table top ...
J.U.M. - Model 900 - High Temperature Non Methane Hydrocarbon Cutter
J.U.M.'s External Non Methane Hydrocarbon Cutter allows the added capability to measure alternately METHANE ONLY or THC with one heated total hydrocarbon analyzer ...
