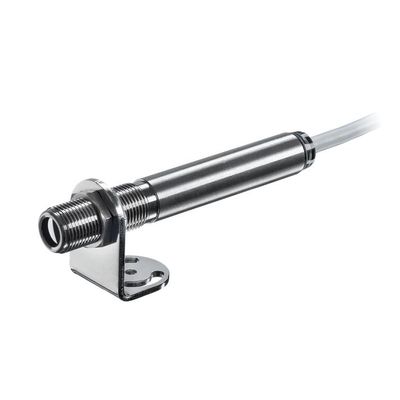

Optris - Model CS LT / CSmed LT -Compact Single-piece Industrial infrared Pyrometer
Optris offers the industrial benchmark for affordable industrial pyrometers with the CS LT single-piece infrared sensor. Measurements of plastics, painted metal, glass, and ceramics are supported from -50 °C – 1030 °C with temperature resolution down to 25mK. The miniaturized M12 stainless steel measuring head is designed to fit even the tightest spaces, setting and industrial standard for integration efficiency.
The sensing head endures and ambient temperature of up to 80 °C without any cooling accessory, which often allows close positioning next to heat sources. A close focus accessory is available that optimizes measurements from 10 mm. The
intelligent LED display works optionally as and alarm signal, target support, self-diagnosis, or temperature-code display. The optional USB adapter supports and effortless configuration through our smartphone app or the Windows software. Air purging, mounting brackets and a laser alignment tool are available accessories.
The sensors offer selectable 0 – 5 V or 0 – 10 V free scalable or thermocouple type K outputs. and alarm output of 0 – 30 V/50mA (open collector) is standard. The optional USB adapter supports and effortless configuration through the IRMobile app or the Windows software.
Engineered and manufactured in Germany, he CS LT offers the best value in the market for affordable pyrometers making it the perfect choice for OEM or other price sensitive applications.
