Sensor System Technology Co.,Ltd (SENSYS)

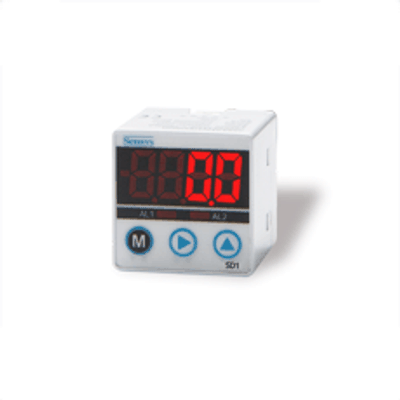

SENSYS - Model SD1000 -Compact Size(30X30mm) Digital Indicator
The SD1000 is a 30X30mm compact size digital indicator. The display has a 4-digit LED. Analog input and output can be selected from 0~5Vdc, 1~5Vdc, 4~20mA with the front button. Alarm output is provided in 2-channel NPN open collector and PNP open collector types and can be selected when ordering.
- Compact design(30X30mm)
- ±4Digit LED display
- Input Signal : 1~5, 0~5VDC, 4~20mA
- Analog Output : 1~5, 0~5VDC, 4~20mA
- Switch Output : 2CH NPN or PNP open collector output
- 0.5%FS accuracy
- Dimension : 30mm X 30mm X 33mm
