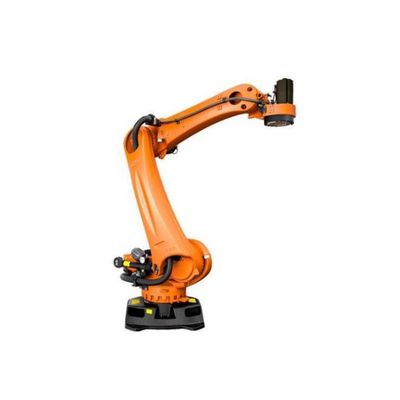

IMANPACK - Compact, Sturdy and rapid Palletizer Robots
Compact, sturdy and rapid palletizer robots ideal for handling objects of different types and weights. It can be equipped with a pick-up head with grippers or suction cups, according to the product type.
Most popular related searches
- Microprocessor controlled movement.
- Powered by AC brushless servomotors.
- Suction cup or pneumatic gripper head according to the type of product being handled.
- Floor mounting position.
- Machine built according to CE Standards.
- Speed : up to 56 cycles/min (KR 40 PA); up to 29 cycles/min (KR 120 PA); up to 27 cycles/min (KR 180 PA)
- Product weight : up to 40 kg (KR 40 PA); up to 120 kg (KR 120 PA); up to 180 kg (KR 180 PA)
- Installed power : 13 kW - Voltage 400 V - 3ph + PE
- Compressed air : 6 bar
