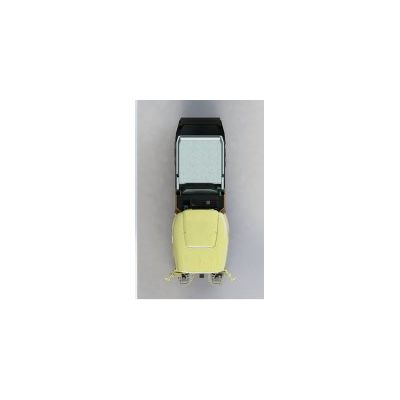

Kademe - Model 2,5m3 -Compact Sweeper

Engine Data

• Model: Tumosan
• Cubic Capacity: 4.1 LT
• Number Of Cylinder: 4
• Gross Rated Power: 74KW - 2200dev/dak(rpm)
• Max. Torque: 375 Nm - 1550(dev/dak)/(rpm)
• Operational Rpm: Ideal 1500-1600(dev/dak)/(rpm)
• Operational Rpm: Stage 3a

Control Panel

• Speedmeter
• Raised Hopper Warning
• Auxiliary Enqine Hour Control
• Low level water indicator
• Engine Tachograph Meter
• Low level Hydraulic Indicator
• Control Monitoring System

Fan

• Model/ Type: Heavy Duty, Dynamically Balanced impeller with multivane corrosion resistance blades
• Design: Whisper Wheel Fan System
• Operation speed: Operational speed in between variable 2800-3500(rpm)
• Drive: Hydraulic motor drive system
• Construction: Stainless Steel AISI304
• Housing Liner: Opsional

Compact Sweeping Equipment

• Side Brush: Ø 500mm 100-200(rpm) Hydraulic motor driven
• Nozzle Diameter: 0200mm
• Nozzle Width: 850mm
• Nozzle wheel Diameter: 0250mm

General Data

• Chassis Requirement: 4 Ton/Tonnes
• Wheelbase: 1700mm
• Dump Height: 1600mm
• Dump Angle: 90°±5
• Door Opening Angle: 50°±5
• Dust Spray Pump Output: Up to 20LT & 100BAR (Piston Pump)
• Hydraulic Suction Filtration: 25 Micron
• Sweeping Speeds: 0-16km/h
• Hopper Construction Stainless steel AISI304 Silindir Tahrikli Arka Yone/ Hydraulic to rear
• Sweeping width: 2000-2850mm

Optional

• Wander hose with boom and Trunking excess of 4 meters long
• High Pressure washing system (30LT/200BAR)
• Variable and Adjustable Side Brush speed
• Variable side brush positining system
