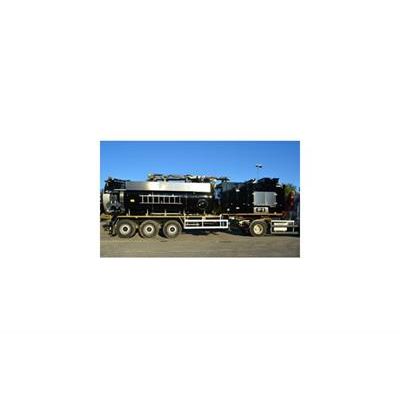

Disab Centurion - Model LN30 -Complete Semi-Trailer Mounted Material Handling Unit

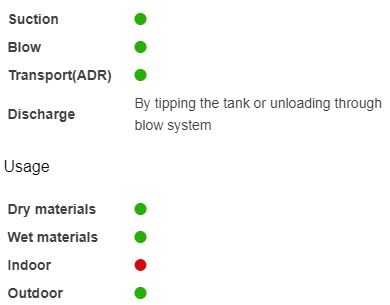

This vacloader is equipped with a separate diesel engine which makes it possible for the vacloader to operate independently of the truck. It has suction, blow, and ADR features and provides great flexibility for different applications with multiple add-ons available. Its round tank design makes it suitable for wet and dry applications and it’s often used in following industries: chemistry, paper & pulp, energy etc.
A complete semi-trailer mounted material handling unit that can convey material using airstreams (pneumatic transport), created by either vacuum or overpressure. The handled material may consist of hazardous material where ADR and GGVS regulations are applicable. Tank codes are L4AH and S4AH.
The unit is equipped with a separate diesel engine offering the possibility to utilize different local fuel taxation regulations. It also makes the machine operate independently of the truck.
The material tank and filter compartment are combined and the dust from the filter compartment is emptied through a hatch in the partition wall in the tank at the same time as the tank is tilted.
Collected material is discharged by tilting the tank or pneumatically through a hose.
- Vacuum pump: 3-lobe roots pump
- Max vacuum, mbar: 950
- Max overpressure, mbar: 1100
- Air volume m3/h (unloaded): 8100
- Operation speed (rpm): 2650
- Power: 220
- Voltage Frequency, V/Hz: N/A
- Tank volume (m3)*: 12
- Total tank volume: 14m3
- Power source: Diesel
- Engine type: Stage III / Stage IV
- Tank material: stainless steel / acid-proof steel
- Tank tipping: Hydraulic front cylinder, double acting system. Tailgate is hydraulically operated and locked.
- Main filter system (m2): 70 stainless steel cages with filter socks in needled polyester glazed surface. Filter area is 26 m2
- Safety filter surface(m2): 33
- Cooling air: Cartridge filter
- Atex: N/A
Weight and Dimensions**
- Complete unit (including chassis): 25 500kg
- Total unit length including tuck chassis: 11 000mm
- Total width: 2 500mm
- Height (incl. hose boom): 4 000mm
