RPE - Model R Series -Componible Solenoid Valve
FromRPE S.r.l.

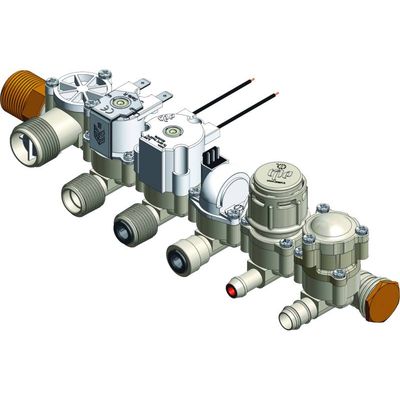

Modular R Series: 2/2 solenoid valve, dn 11mm, servo-assisted, NC (normally closed), multiple inputs and outputs. Also available with direct drive and in the NO (normally open) and bistable version.
Most popular related searches
Installation
- In all positions - Optional: plastic or metal fixing bracket
Applications
- Hydromassage tubs;
- Multi-function hydromassage showers;
- Water dispensers;
- Irrigation systems for verandas and gardens;
- Industrial furnaces.
Physical specifications
- Body valve PA 66 - 30% GF
- Diaphragm: NBR; LSR, EPDM
- Core: Stainless steel
- Coils F Class (155°)
- Assembly Self-tapping screws
Working specifications
- Working pressure 0,2 - 10 bar
- Room temperature Tu 60 °C
- Fluid temperature Tm 25 °C - Tm 60° C - ED 100%
- Tm 90 °C (3 ON - 5 OFF)
- Orifice DN 11 mm
- Control Normally Closed (NC);
- Normally Open (NO);
- Latching.
- Fluid direction Unidirectional
- KV 1 outlet 18,95 L/min
Electrical Connections
- Faston 6,3x0,8 mm
- Unipolar wiresi max 5000 mm
- Bipolar wiresi max 5000 mm
MOQ
- Mod. RC 104 18 pcs
- Mod. RC 104 18 pcs
- Mod. RC 104 12 pcs
- Mod. RC 104 12 pcs
