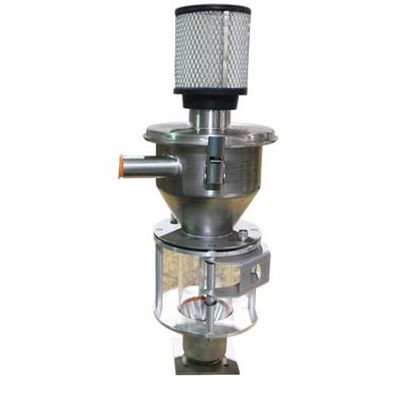

ACS-AEC - Model AVL Series -Compressed Air Loaders
FromACS Group
AVL loaders are designed to provide trouble-free conveying using compressed air. These highly efficient, self-contained loaders use compressed air and an efficient venturi to draw material from drums, bins, material bags, or gaylords. The material is drawn through the venturi under vacuum and then conveys into the receiver using pressurized air. The material is separated from the air stream and is deposited into the bin or process machine.
Most popular related searches
compressed air
air filter regulator
capacitive sensor
level sensor
pressure gauge
air regulations
dust bag
air filter
drum filling system
air material separator
- 1-1/4” standard vinyl flexible hose
- Two hose clamps for 1-1/4” vinyl flex hose
- 3/8” poly hose air line
- Noise dbA <75
AVL-A and SVL-B Series Features
- Receiving hopper for material Standard flange with quick release fasteners
- Control assembly with low power consumption solenoid – 115/1/50-60 Hz
- Air filter/regulator combination with pressure gauge
- Capacitive sensor for material demand with 16.4 foot (5 meter) quick disconnect cable to control venturi/wand assembly with quick connect air line fittings
- Second venturi/wand assembly with quick connect air line fittings
- 1-1/4” O.D. wye-tube with coupler to attach to material inlet on receiving hopper
- Additional control assembly for second venturi assembly including air regulator with pressure gauges
- Drum fill evacuation system
- Mobile drum stand on casters (two locking/two swivel) with adjustable arm and filtered 22” dia. drum cover
- Control assembly with low power consumption solenoid – 115/1/50-60Hz
- Capacitive sensor for material demand (inside drum) with 16.4 ft (5 meter) quick disconnect cable venturi/wand assembly with quick connect air fittings
- 1-1/4” standard vinyl flexible hose
- Two hose clamps for 1-1/4” vinyl flex hose
- 3/8” poly hose air line
- Direct mount flange (with remote mount level sensor)
- Bin mount flange adapter with SRC 02-16 bolt circle (level sensor mounted to flange)
- Sight glass assembly for machine mount of AVL loader with sensor mounted to glass assembly with a capacity of 0.005 cubic feet (.140 liters) and 0.20 lbs. (91 grams)
- Torpedo magnet for sight glass assembly
- Dust bag kit with tube in lieu of standard filter for dusty regrinds (not available for AVL-A loaders)
- Universal adapter for grinder take-off attachment to fit up to 2” O.D. Material line connection (slips over existing tube stub)
- 230/1/50-60 voltage
