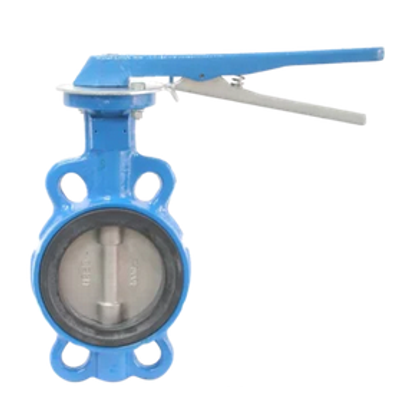

Klinger - Concentric Butterfly Valve
Concentric Butterfly Valve: designed for general industrial applications, with different types of configuration and construction, according to the application needs. Wafer type construction for mounting between flanges, LUG type and flanged in accordance with the different types of existing flange standards (DIN, ANSI, BS, JIS).
Most popular related searches
concentric butterfly valve
butterfly valve
industrial butterfly valve
concentric design butterfly valve
HVAC industry
industrial irrigation
HVAC
industrial HVAC
Standards
- End dimensions acc. to DIN2633
- Inspection test acc. to EN12266
Limitation
- Do not use EPDM when hydrocarbons are present.
- Kindly anticipate increased torque for PTFE coated disc + PTFE seat option; gear operation recommended for sizes 4”.
- End-of-line service at half rating
- Suitable for use in HVAC, irrigation, industrial applications where positive shutoff is required
- Single through-put shaft provides most economical pricing
- 10 position lever or gear operation
- Alloy material available on request
- Double “half pin” style available for increased performance and lifecycle
- Coated disc available in: rubber, PTFE, nylon
