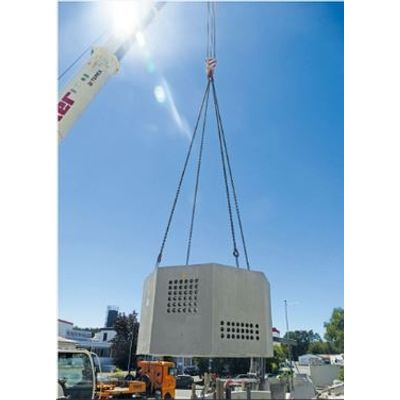

P.V. - Concrete Cable Chambers for Cable Management

SHARE

Compact cable chambers are made of reinforced concrete C 40/50, DIN EN 206-1 and DIN 1045-2. In the standard version, they have a DN 100 drainage opening in the base plate and can be designed for load classes B or D, DIN EN 124 and DIN 1229. The design of the cable entry is executed according to the order as:

  • cable shaft walls with facing of the opening for on-site installation of the cable conduits
  • factory installation of the cable penetrations (all common manufacturers)
  • factory installation of single and double seal packings
  • openings according to specification

Our cable ducts are important building blocks for the digital transformation in Germany and Europe. An improved digital infrastructure is the backbone of digitalisation. Only high-performance networks make digital processes, products and business models of companies possible. Our cable chambers are indispensable as pull-through, connection and branching chambers, as well as protection and mechanical relief for cable lines when laying electrical & digital cables underground.
