Challenge Technology - Concrete Thermal Expansion
A computer controlled, automated, concrete thermal expansion testing machine.
Most popular related searches
materials testing system
calibration standard
material testing
certified reference
bathing water
concrete testing system
machine monitoring
calibration bath
concrete testing
water sampling
Fully automated
- Fully automated testing machine for measuring concrete thermal expansion characteristics

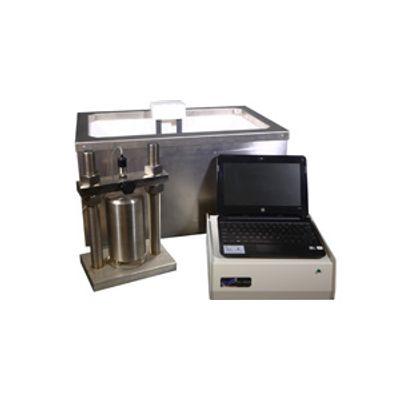

- Includes testing frame with LVDT, USB control interface, insulated water bath, calibration sample, and computer with CTE-200 software
- User-focused design
- Rugged and dependable
- Includes one measuring frame, can be expanded for measuring two samples simultaneously
- Challenge Technology reputation for building the highest quality testing equipment available
- The operator places the sample into the test frame, enters the sample height and the data file name at the beginning of the test and the testing proceeds unattended
- Preprogrammed computer controls, measures, and records all CTE data and shuts down upon test completion
- Includes a 304 stainless steel calibration standard and calibration software for automated calculation of frame correction factor
- Certified reference samples are available in 410 stainless steel and Titanium
- Software follows the AASHTO T 336-11 testing protocol
- Sample Size: 4" diameter X 7" height
- Water Bath: Custom Insulated, approx. 10 gal.
- Power Requirements: 115V; 60Hz (optional 240V; 50Hz)
- Test Frame : Adjustable for sample heights from 4" to 8.5"
- Temperature range: 10C to 50C
