Topas - Model CFG 291 -Condensation Fog Generator

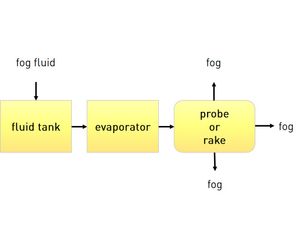

Condensation Fog Generator CFG 291 for fog generation to visualise air flows according to ISO 14644-3. The mobile fog generator CFG 291 is used to generate a highly visible, stationary fog for visualising air flows. It combines the handy design of the previous model CFG 290 with optimised fluid guidance and a specially developed evaporator. The fog generator is primarily used for the initial acceptance and routine inspections of cleanroom systems in accordance with the standard series ISO 14644 or guideline VDI 2083-3 in order to detect leaks in the transition areas of cleanroom elements, to prove the presence of laminar displacement flow or to visualise the overpressure level of cleanrooms.
