Poly Products, Inc. - A Senney Enterprises Company

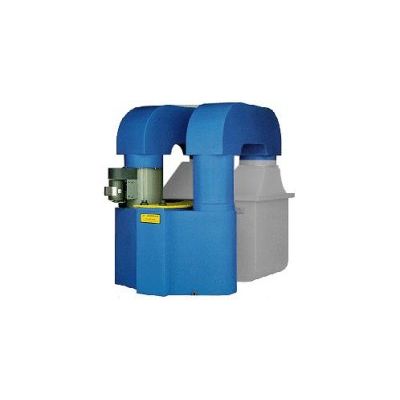

ET-Companion - Condenser
When installed with an EVAPORATIVE TANK™, the ET-Companion Condenser removes water from the evaporator`s air exhaust and returns it in the form of distilled water for reuse. The dry air is returned to the EVAPORATIVE TANK™ to work again.
Most popular related searches
evaporative tank
air conditioning
condenser coil
exhaust duct
wash water
water distillation
water evaporator
cooling water
cooling water flow
water recycling
- No more holes in your roof for exhaust ducting. No need for permits from air quality people; this is a completely closed-loop air system.
- Recovers all water that is evaporated. Today`s regulations require recovery of resources wherever possible. It makes economic sense, and removes the need for permits. Reuse your rinse water.
- Eliminates the air make-up problem. The same air is used over and over again. No need to heat or air condition replacement air - saving thousands of dollars.
Dimensions:
- Base Unit with Fan: 37" W, 54" L, 55"
- Height With Connection Ducts: 76"
Weights:
- Dry with Ducts: 400 lbs.
- Crated with Ducts: 450 lbs.
Fan H.P.: 1-1/2
Fan Current:
- 115 V.A.C: 13 AMPS
- 230,3Ø: 3.75
- 460,3Ø: 1.88
Cooling Water:
- Maximum Flow: 58 gpm
- Inlet Temperature: 80F or cooler
- Pressure Drop: 4.8 ft.
- Water Connections: 2" M.P.T.
Condenser Coil:
- Copper Coils and aluminum fins have a ElectroFin coating that is resistent to practically all corrosive atmospheres
Meet the Condenser! The ET-III-W EVAPORATIVE TANK will evaporate water into the air stream that is passing though the unit and produce humid air, very much like a clothes-dryer at home.
