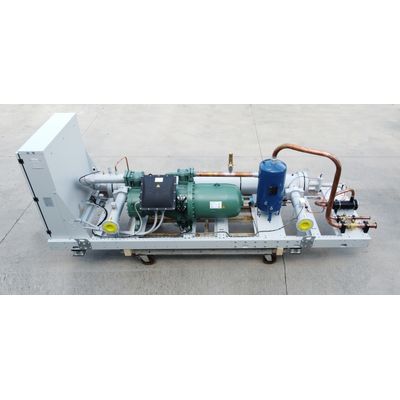

Hitema - Model CWB1.350 -Condenserless Chiller with One Refrigerant Circuit

Hitema condenserless chiller Model CWB1.350 has been designed to be installed where there is a lack of space. It is equipped with one refrigerant circuit, with one shell and tube evaporator, one screw compressor and one oil separator. The compressors shut off valves are extremely helpful in case of maintenance must be performed, while the spring antivibrating mounts allow to reduce the vibrations caused by components on the chillers, preventing refrigerant piping damages. Furthermore the electrical components are design for high temperatures and the high pressure prevention system reduce the load in case the condensing pressure raise too much. This extend the chiller operation envelope.
