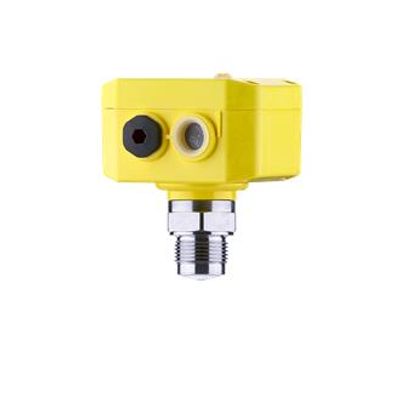

VEGAKON - Model 61 -Conductive Limit Switch for Liquids Front-Flush Mounting
Compact level switch with partial PTFE insulation. Application area: For front-flush installation. The instrument is ideally suited as full or empty detector in pipelines. The VEGAKON 61 is a condcutive limit switch for conductive liquids. The instrument is best suited as full and empty detector in pipelines.
Most popular related searches
level switch
conductivity level
pipeline locating
pipeline monitoring
conductivity instrument
sealing cone
- Optimum cleanability through front-flush mounting
- Maintenance-free operation through probe insensitive to buildup
- Time and cost-saving setup without adjustment with medium
Measuring range - Distance
- - [Meter - Foot]
Process temperature
- -40 ... 150 °C [°C - °F]
Process pressure
- -1 ... 25 bar [Bar - kPa - psi]
Version
- Compact version
Materials, wetted parts
- PTFE
- 316L
Threaded connection
- G1
Hygenic fittings
- Cone DN25
Seal material
- no media contact
Housing material
- Plastic
Protection rating
- IP66
Output
- Relay (DPDT)
- Transistor (NPN/PNP)
Ambient temperature
- -40 ... 70 °C
