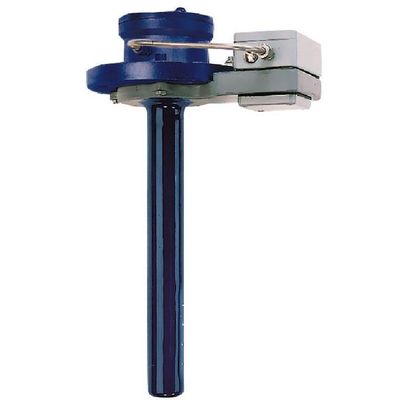

Pfaudler - Model Type LF -Conductivity Probe
FromPfaudler GmbH
The LF sensor type accurately measures the conductivity value in harsh applications. The Pfaudler Heavy-Duty Design allows it to be installed in-line directly in the product flow. The wear resistant smooth glass-lined layer uses the product flow to keep the surface of the sensor clean while resisting any potential product build up that may occur. The LF probes are available in a rod design (with different lengths) and a ring design.
Most popular related searches
liquid analysis conductivity
conductivity monitoring
wear resistance
conductivity probe
liquid analysis
surface sensor
conductivity analysis
surface cleaning
conductivity sensor
- Type LF Rod / Ring
- Measuring range 0.01 to 2,000 mS/cm
- Operating temp. -25 to +200°C
- Operating pressure -1 to +40 bar **
- Ex. protection II 1/2 G Ex ia IIB T6 or
- II 2G Ex ia IIC T6
- Dimensions (mm) Rod probe:
- L = 300 – 3,200 *
- DN = 50 – 200 *
- Ring probe:
- DN50 / DN80 *
- Heavy-Duty Design
- Highly resistant glass layer
- Maintenance free
- CIP/SIP-compliant
- Self-cleaning
