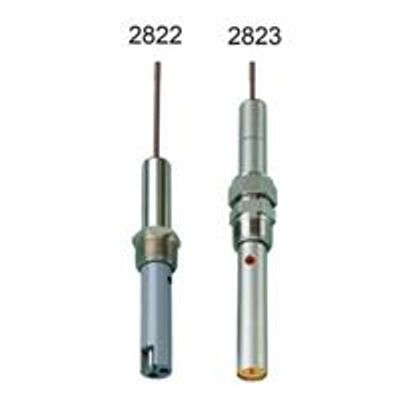

+GF+ Signet - Model Type 2822/2823 -Conductivity/Resistivity Electrode

Conductivity/Resistivity: Wetted Materials: 316 SST or Titanium. Process Connection Choices: 3/4 inch threads for In-line or Submersion, 1.5 inch Sanitary Tri-clamp flange and 2 inch Sanitary Tri-clamp flange. Cell constants and corresponding measuring ranges: 0.01 cm-1 / 0.55 to 100 μS (18.3 mΩ to 10 KΩ) 0.1 cm-1 / 1 to 1000 μS (1 mΩ to 1 KΩ). 1.0 cm-1 / 10 to 10,000 μS (5 to 5,000 ppm). 10.0 cm-1 / 100 to 200,000 μS (50 to 100,000 ppm). 20.0 cm-1 / 200 to 400,000 μS (100 to 200,000 ppm) . Compatible Instruments: Signet Instrument Types: 8850, 8860 8900, 9900 or the 9950 with the 2850 Sensor Electronics. Additional Features: (2823) Thread is reversible for submersion mounting.
