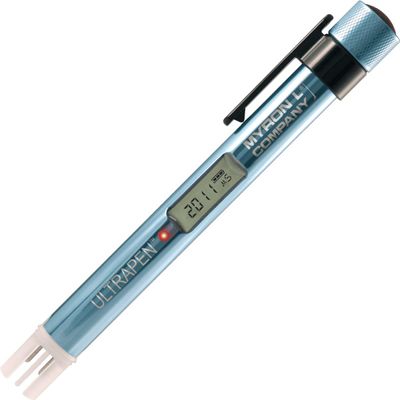

Myron L - Model Ultrapen PT1 -Conductivity/TDS/Salinity & Temperature Pen
This portable water analysis instrument is designed to be extremely accurate, fast and simple to use in diverse water quality applications. Advanced features include the ability to select from 3 different solution types that model the characteristics of the most commonly encountered types of water; proprietary temperature compensation and TDS conversion algorithms; highly stable microprocessor-based circuitry; user-intuitive design; and waterproof housing. A true, one-handed instrument, the PT1 is easy to calibrate and easy to use. To take a measurement, you simply press a button then dip the pen in solution. Results display in seconds.
- Reliable Repeatable Results
- Accurate
- Affordable
- Easy to Use
- Rugged Design
- Ensure Product Quality
- Reduce Waste
- Protect the Environment
- Accuracy of ±1% of READING ±.2% at calibration point
- Reliable Repeatable Results
- Automatic temperature compensation
- Autoranging
- Accuracy of benchtop lab equipment in an affordable, portable, compact pen
- Rugged, reliable, shock-resistant fully encapsulated electronics, body constructed of aircraft aluminum
- Simple one button function
- Specially designed with measurement ranges and solution modes to meet the water quality testing needs of many applications
- High capacity N-type battery included
- Waterproof
- PT1 Pocket Water Analysis Pen – Battery Installed
- Protective Cap
- Scoop
- Pocket Clip
- Quick Start Guide
- Measurement Range: 1 – 10000 µS or ppm (0.0010 – 10.000 ppt salinity)
- Accuracy (After Wet Calibration): ± 1% of reading
- Repeatability:< 1000 µS or ppm ± 1 Count ≥ 1000 µS or ppm ± 0.3% of reading
- Resolution:
- Conductivity and TDS: 0.1 for 1.0 – 99.9 µS or ppm 1 for 100 – 10000 µS or ppm
- Salinity: 0.0001 for 0.0010 – 0.0999 ppt 0.001 for 0.100 – 10.000 ppt
- Temperature: 0.1ºC / 0.1ºF
- Time to Reading Stabilization: 10 – 20 seconds
- Power Consumption: Active Mode: 30 – 140 mA, Sleep Mode: 2 µA
- Sleep Mode Power Consumption: 2 µA
- Temperature Measurement Range: 0 – 71°C or 32 – 160°F
- Temperature Accuracy: ± 0.1ºC
- Temperature Compensation: Automatic to 25ºC
- Physical Dimensions: 17.15 cm L x 1.59 cm D or 6.75 in. L x .625 in. D
- Weight: 55 g or 1.94 oz.
- Case Material: Anodized Aircraft Aluminum with Protective Coating
- Battery Type: One N type, Alkaline, 1.5V
- Calibration Solution Point: 1800 µS KCl; 3000 ppm 442™ (2027 ppm NaCl)
- Operating/Storage Temperature: 0 – 55ºC or 32 – 131ºF
- Water Resistance: IP67 and NEMA 6
- E Minimum height 5 mm EN61236-1: 2006 – Annex A: 2008 Electrostatic discharge to the PT1 may cause it to spontaneously turn on. If this occurs, the PT1 will turn off.
WARNING! These products can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- Agriculture
- Hydroponics
- Desalination
- Aquaculture
- Pharmaceutical
- Boilers and Cooling Towers
- Fountain Solutions for Printing
- Horticulture
- Wastewater
- Pool and Spa
- Food and Beverage
- Irrigation
- Reverse Osmosis
ULTRAPEN™ PT1 Standard Solutions:
- Standard Solutions for Calibration: MODEL#s: KCL-1800, 442-3000 (2027 ppm NaCl)
