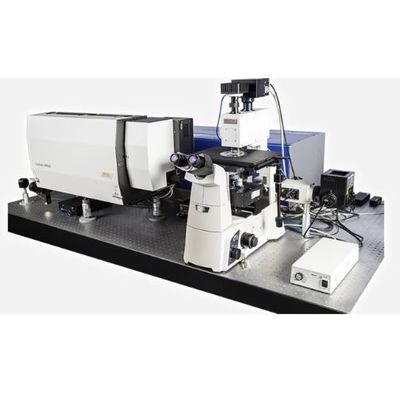

Confotec - Model CARS -Microscope-Spectrometer
Confotec CARS is the multifunctional multi-channel 3D scanning laser microscope-spectrometer. Confotec® CARS is intended for simultaneous and multifunctional analysis: high-speed imaging by CARS signal; confocal Raman imaging; confocal fluorescence imaging; confocal imaging in the reflected laser radiation; high-contrast imaging in the transmitted laser radiation; as well as visualization of a surface profile by means of the second harmonics generation signal.
Most popular related searches
scanning microscopy
laser microscope
laser scanning microscopy
3D scanning
microscopy
biological sample
microscopy raman
biological sampling
3D laser scanning
confocal raman microscope
Microscope Confotec® CARS combines in one system:
-
CARS scanning microscope
-
Raman/luminescent scanning confocal microscope
-
Conventional scanning confocal laser microscope
- High sensitivity: CARS generates more intensive and directed signals in comparison to spontaneous Raman microscopy.
- Anti-Stokes CARS signal has frequency exceeding pumping waves frequencies and is detected in a spectral range free from the stray light of Stokes luminescence.
- CARS signal is registered only in a focus where excitation intensity is the highest. It allows imaging with a high spatial resolution using non-confocal pinholes and also performs 3D layer-by-layer scanning with minimal neighboring layers influence on measuring results.
- Spectral resolution of CARS signal is defined only by the width of pumping lasers lines, what simplifies spectral measurements, as detection of CARS signals can be performed without any spectral instrument.
- CARS signal is proportional to the squared molecule concentration, it allows using CARS (along with the selectivity and noninvasivity of the method) for quantitative measurements of chemical substance concentration in a sample.
- Minimal invasive (nondestructive) CARS method for biological samples. Due to the high sensitivity of CARS method molecules in living cells can be detected without fluorescent markers.
-
Nanobiotechnology: real-time noninvasive analysis of biological samples (cells and components of living cells) with high spatial resolution.
-
Micro- and nanotechnology investigations of properties of non-biological microstructures: semiconductors, liquid crystals, polymers, pharmaceutical components, micro- and nanoparticles.
