DC Machine - Conical Screw Mixer

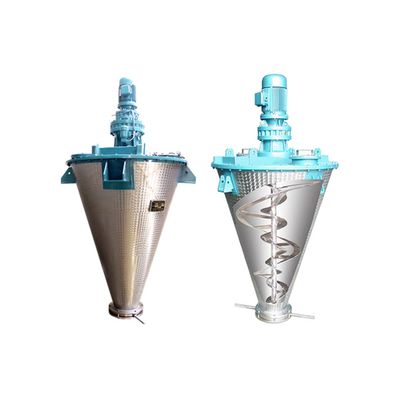

Conical Mixer consists of a transmission device, taper cylinder, outer ribbon mixer, inner reverse screw mixer and discharge valve. It is a new design for viscosity material. The material circles and rises under the operation of the outer ribbon mixer, while the inner reverse screw presses down the material along the shaft, which finishes the mixing. With a long force arm and weak impact force, this equipment is suitable for the mixing and reaction of highly adhesive materials with viscidity under 200, 000 cps, such as chemicals, paints, coating materials and adhesive. It is particularly useful for the mixing of non-Newtonian fluids containing a lot of solid elements.
