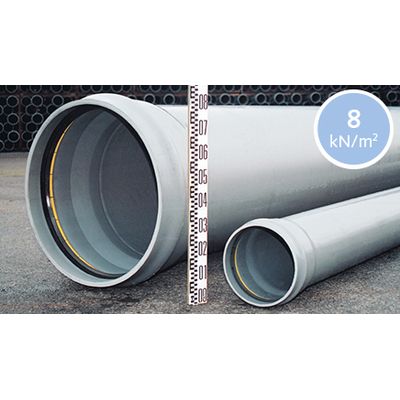

Connex - Model DN/OD 315 - 800 -Underground Drainage Pipe System

The CONNEX Sewer Pipe System DN/OD 315 – 800 (SDR 34, SN 8) comes with a complete range of fittings offering clients and civil engineering companies a real alternative to traditional materials in the sewer sector. With installation depths of 0.8 to 6.0 m and the installation pursuant to EN 1610, traffic loads of up to SLW 60 (HA20) are possible. The CONNEX Sewer Pipes are equipped with the permanently integrated 2 component CI® sealing system. The CI® sealing is firmly integrated into the pipe socket; it cannot be dislodged and therefore it cannot be forgotten or pressed out when joining pipes together. Even with an angled connection of up to 3° the push fit connection is permanently tight.
