Consilium - Model 5100860-00 -Building Distributed Cabinet

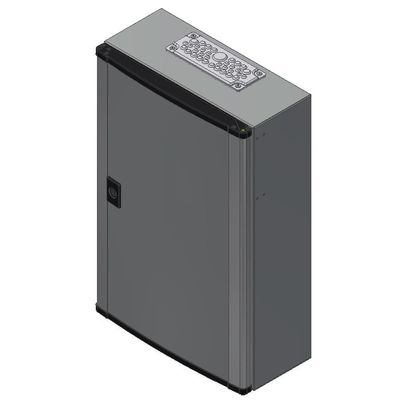

The Distributed Cabinet is designed for fire alarm systems in large industrial buildings, public buildings, and hospitals. This compact and light
wall-mounted cabinet is supplied without panel, and is intended to expand the fire alarm system with distributed modules. The cabinet has two
rows of DIN rails for terminals and extension modules. The cabinet is approved according to CPR.

• Two main DIN-rails with 2×380 mm space for terminals and modules
• Space for 2×28 Ah batteries at bottom of cabinet
• Ready for left side mounting of the outer door
• Ready for mounting of an inner door (for use as switchboard panel)
• 28 mm ventilation holes in back plate and 7 mm distances to wall, to ensure proper ventilation for modules
• Possibility to use regular window air inlet filters, size 400×30 mm, if needed in dust areas (insertion below the modules)
• 4×M8 mounting points and one centred keyhole for easy mounting
• FL21 multigate plastic gland plate for cable inlet at the top of the cabinet
• Swedish standard fire key lock (SS3654)

For details on assembling a system and definitions of common system terms, refer to the Installation Manual.
