Boyuan - Construction Site Non-Woven Geotextile
Geotextile: also called polyester staple fiber needle punched geotextile, is a kind of permeable geosynthetic material made of synthetic fiber by flapping or weaving. Geotextiles has good impermeability and resistance to deformation, which allows geotextiles be widely applied in civil projects for separation, filtration, reinforcement, protection and drainage.
- Product name: Non-woven geotextile
- After-sale Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection,
- Place of Origin: Shandong, China
- Geotextile Type: Non-Woven Geotextiles
- Type: short fiber
- Product name: Geotextile Non-Woven Fabrics
- Color: Black White Blue Green Grey
- Application: Building Construction, Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard
- Material: PP (polypropylene) PET (polyester)
- Keyword: Nonwoven Needle Punched Geotextile
- Width: 1-6m
- Length: 50-100m/roll (at Request)
- Weight:100-1000g/sqm
- UV resistant
- High temperature resistance to up to 230℃ maintaining structure stability and original physical properties
- High flat drainage and vertical permeability
- High creep resistance
- Resistance of erosion of chemicals in soil as well as the corrosion of gasoline and diesel etc
- High elongation under certain stress, thus able to adapt to uneven and irregular bases
Separation
Engineers and contractors typically use non-woven geotextiles in the construction of roads, railways and embankments where the ground is soft and unstable. Using a layer of Geotextile to separate the soft ground from the fill material will reduce the amount of fill required, increase the life span of the road or rail structure and cut long-term maintenance costs.
Drainage
The permeability of non-woven geotextiles means that they can provide excellent drainage properties when used as part of subsoil drainage systems. Typically lighter, or thinner, grades of geotextiles ar used in drainage applications as they offer better drainage properties than heaver, or thicker, geotextiles. For typical plumbing and drainage applications we recommend use of our Filterwrap geotextile.
Filtration
Nonwoven geotextiles are highly porous, allowing water to pass through while preventing soil migration. When used in revetment and subsoil drainage projects, geotextiles are more cost effective than natural filters such as sand or aggregate. As with drainage applications, lighter grades of geotextile offer greater filtration properties. We would recommend use of bidim A14 or A19 for most filtration applications.
Protection of Geomembranes

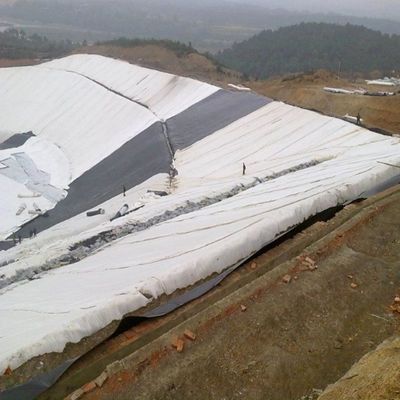

Using heavyweight nonwoven geotextiles in landfills, ponds, tailings dams or any other containment facility extends the life of the lining system by protecting it from punctures and excessive deformation. The geotextile acts as a cushioning and stress relieving layer, minimising the chances of leakage in the long term. Needle free bidim geotextiles are commonly specified in landfill and containment applications to prevent damage to the underlying liner.
Reinforcement
Woven geotextiles are used in reinforcement applications, such as the construction of embankments on soft soils. Woven geotextiles provide reinforcement by maintaining the stability of soil by carrying tensile loads.
