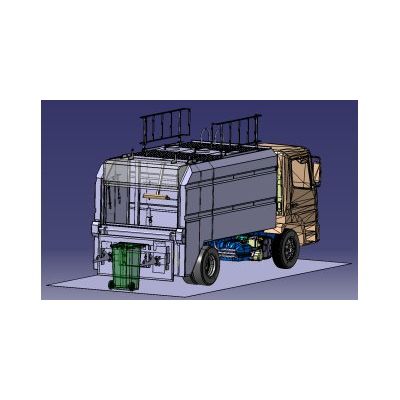

Kademe - Container and Road Washing Machine

Auxiliary Engine Data

• Model: Tumosan
• Cubic Capacity: 2.9 LT
• Number Of Cylinder: 3
• Gross Rated Power: 55KW - 2200dev/dak(rpm)
• Max. Torque: 220 Nm - 1550(dev/dak)/(rpm)
• Operational Rpm: Ideal 1500-1600{dev/dak)/(rpm)
• Operational Rpm: Stage 3a

Optional Features

• Hot Water Boiler
• Additional Pressure Unit
• Washing Gun
• Control Monitoring System

Wash Features

• Container Sizes(Liter): 140,240,400,800, 1100
• High Pressure Water: 150 BAR

General Data

• Chassis Requirement: 15 Ton/Tonnes
• Wheel base: 4100mm Minimum
• Sulama Pompasi: 150 Bar 60 It/min (Inter Pump)
• Drive: Power Take Off
• Gun valve by water pressure rotating: Bolondi
• Around 800 containers are 2000 litres water tank could wash it.

Control Panel

• Low level water indicator
• Low level Hydraulic Indicator
