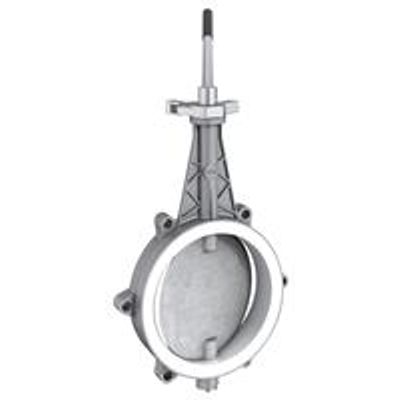

EBRO ARMATUREN - Container valve BE 250/BE 300
Series production is our business - the development of customised solutions for special applications is our passion. For more than 40 years we have been developing tailor-made solutions in close collaboration with our customers, for challenging fields of application that simply require more than a standardised valve product. This has resulted in countless variations. Many of them have been developed to series production, others are manufactured in small batches for selected applications. We can only show the tip of the iceberg here. Challenge us!Most popular related searches
Nominal diameter: DN 250, DN 300
Face-to-face: EBRO works standard
Flange connection: according to the connections in container building
Flange surface design: EN 1092 form A /B, ASME RF/FF
Marking: EN 19
Tightness check: EN 12266 (leakage rate A), ISO 5208 category 3
Temperature range: -20°C to +160°C (depending on pressure and medium)
Max. operating pressure: max. 1 bar
Body: Aluminiumalloy GD-AlSi9Cu3 (3.2163)
Seat: EPDM, NBR, FPM, SBR-grün
Disc: Stainless steel G-X6CrNiMo18-10 (1.4408) X2CrNiMo17-12-2 (1.4404)
CE marking number: 0036
TUEV number: 9001:2008
