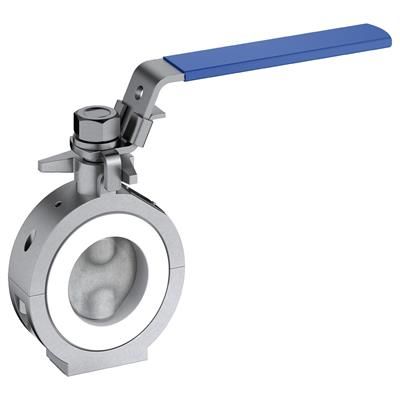

EBRO ARMATUREN - Container valve BE 50/BE 80
Series production is our business - the development of customised solutions for special applications is our passion. For more than 40 years we have been developing tailor-made solutions in close collaboration with our customers, for challenging fields of application that simply require more than a standardised valve product. This has resulted in countless variations. Many of them have been developed to series production, others are manufactured in small batches for select applications. We can only show the tip of the iceberg here. Challenge us!Nominal diameter: DN 50, DN 80
Face-to-face: EBRO works standard
Flange connection: according to the connections in container building
Flange surface design: EN 1092 form A /B, ASME RF/FF
Marking: EN 19
Tightness check: EN 12266 (leakage rate A), ISO 5208 category 3
Component testing: for operation on GGVS/GGVE/GGVSee
Temperature range: -20°C to +160°C (depending on pressure and medium)
Max. operating pressure: max. 4 bar
Body: Aluminiumalloy GD-AlSi9Cu3 (3.2163)
Seat: PTFE
Disc: Stainless steel G-X6CrNiMo18-10 (1.4408)
CE marking number: 0036
TUEV number: 9001:2008
