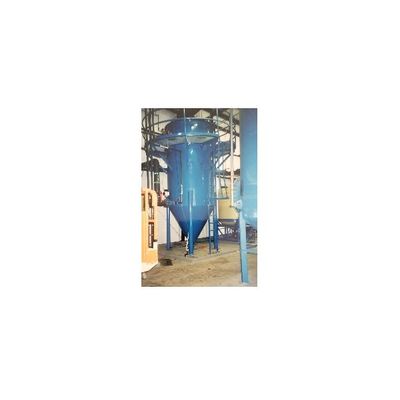

Volcano - Continuous Downflow Sandfilter System
A unique patented design that features multigrade filtration to remove suspended solid contaminants. For use in water and waste water treatment. The VOLCANO SAND FILTER is a continuously backwashing filter which eliminates the need to shut down for backwash like conventional sand filters. Feed water containing contaminants flows downward through coarse, intermediate, and fine sand-media. The contaminants are captured, and the purified water leaves the filter as filtrate. The air lift transports the contaminated sand to the top of the filter where it is cleaned in the washbox. The contaminants are then removed via the reject stream. The cleaned sand falls back to the sand bed and classifies into coarse, intermediate and fine media layers. The process is continuous.
- Continuously Cleaned Sand Bed
- Low Pressure Drop
- No Moving Parts
- Downflow Design
- Multi Grade Sand
- Low Operator Attention
- Non-stop operation. Simple process. Constant filtrate quality. No dead zones or mudball formation.
- No pump required. Gravity feed capability. Low power consumption Low cost.
- No mechanical indexing of chambers. Low maintenance. Low cost.
- Assures high quality filtrate. No bed expansion or short circuits as in upflow designs.
- Allows high loading rates while maintaining fine filtration.
- Low operating cost. Low maintenance. Remote monitor available.
- Pilot Demonstration Equipment
- Lab Testing
- Engineered Systems
- Field Service
Industrial
- Water Reuse
- Waste Water Treatment
- Metal Hydroxide Removal
- Wet Scrubbers & Cooling Towers
- Textiles
- Food & Beverage
- Power
- Pulp & Paper
- Oil & Chemical Plants
- Pure Water
Ground & Surface
- Remediation
- Algae
- Well Water
- River/Pond Intake
- Lagoons
- Leachates
Municipal
- Water Reuse
- Tertiary Filtration
- BOD & Phosphorus Removal
