ENVEA - Model FlowJam -Continuous Material Flow Detection Microwave Sensor (Flow / NoFlow)

SHARE

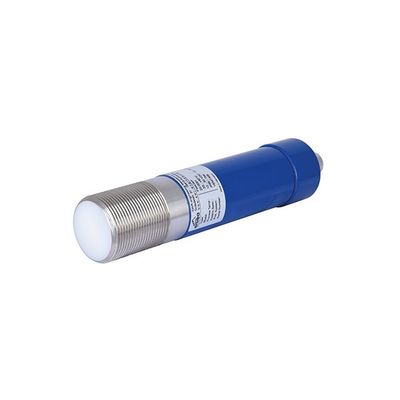

Microwave sensor for contactless monitoring of material flow and detection of material blockage. The system operates with no contact in a process in which the material movement is detected by using the Doppler effect. The FlowJam is a process-secure device, since the microwave technology used can penetrate material coating on the sensor and reliably detect the material movement behind it. If container walls, housings or pipelines are not metal, it is possible to measure from the outside.”

Most popular related searches

material flow detection

cement industry

Absolutely insensitive against material deposits
For any line diameter
With adapter, usable up to 220 °C and 20 bar
Compact (no separate electronics)
With ceramic mounting, usable up to 1,000 °C
Signalling through relay switching
Different sensitivity levels
Detection through all non-conductive walls
Can also be supplied with short housing and separate electronics
Detection of material blockage and material standstill

Steel
Food
Biomass
Cement
Chemistry
Coal plant
Coating
Incineration
Minerals
Wood
Lime plant
Energy
Gypsum
Power plant
Foundry

Material to detect: Dust, powders or granulates
Working principle: Microwave
Process pressure: Max. 20 bar
Process temperature: Up to +1000°C
Mounting: 1 1/2 ” threat connection
Type of Conveying: All
Flow rates: No limit
Pipe diameter/detection range: Up to 1200 mm
Output: Relay

Housing material: Stainless steel 1.4571
Protective system: IP 65
Process temperature: -20…+80 °C
-20…+220 °C (with process adapter)
Max. 1000 °C (with ceramic flange)
Ambient temperature: -20…+60 °C
Working pressure: Max. 1 bar
Max. 20 bar (with process adapter)
Power supply: 24 V DC/AC ± 10 %
Relay contact: Max. rated load: 250 V AC
Max. peak current:6 A
Max. rated load 230 V AC: 250 VA
Max. breaking capacity DC1: 3/110/220 V:
3/0.35/0.2 A
Min. switching load: 500 mW (10 V/5 mA)
Response time: 250 ms …15 s (continuously adjustable)
Measuring frequency: 24.125 GHz; ± 100 MHz
Transmitting power: Max. 5 mW
Weight: 1.0 kg
Dimensions: Housing: length of 216 mm /

diameter of 52 mm
Thread: length of 30 mm /
diameter of G 1½”

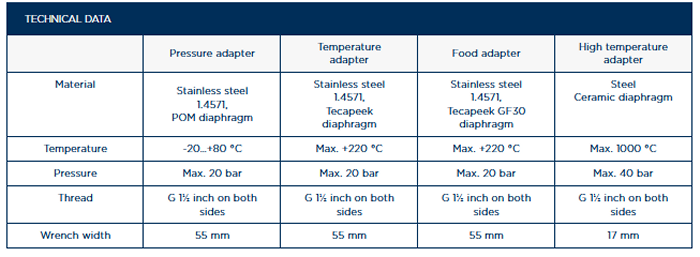

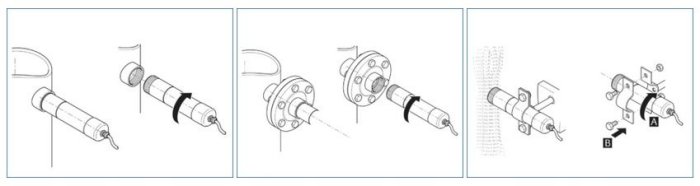

The FlowJam can be easily installed in the following ways:

Figure 1: Screwing into a G 1½”-inch-threaded connection
Figure 2: Using a DN 40 flange
Figure 3: Using a pipe clamp or other holding brackets
