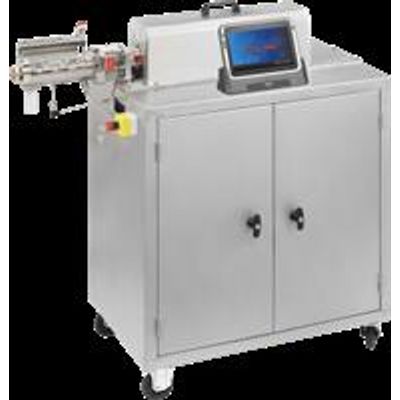

Hasler - Model UCP 25 -Continuous System
Imagine a development tool that offers you thousands of combinations to create your recipes and check the feasibility. The UCP 25 is a solution that integrates your development in a continuous mode. It off ers the double advantage of expanding your development possibilities and preparing an industrial phase with off ering a simple extrapolation. Here is a doubly competitive laboratory equipment: it allows to create a perfectly homogeneous mix, with the good rheology for your application, and to explore an infinity of combinations thanks to its arrangement of modular pallets.
Produce continuously your small volumes
Achieve stable production with constant quality and controlled flow. The UCP 25 will meet the most demanding expectations. Simple to use in a production unit, the UCP connects to 220 V, takes very little space, is easy to clean and can be controlled remotely, with the help of a tablet that records all your data.
- Coatings
- Adhesives
- Battery
- Ceramics
- Flavours
- Hydrometallurgy
- Fertilizer
- Fine Chemicals
- Cosmetics
- Plastic / Compounds
- Food industry
- Pharmacy
- Pigments
- Homogenization,
- Mixing,
- Kneading,
- Shearing,
- Micro-Mixing,
- Galenic,
- Melting,
- Compacting,
- Disintegration,
- Densification.
UCP allows a good traceability of the events and a precise production monitoring.
- Speed setting
- Temperature setting
- Torque setting
- Multiple user management
- Alarm management
- Security management
General characteristics UCP 25:
- Material entry(ies): 1 solid + 4 liquids
- Material equipment: stainless steel
- Heating or cooling zone(s): 1
- Motor type: synchronous motor. 2,2KW (90% efficiency)
- Power supply : 220V single-phase
- Temperature probe : 1
Mechanical characteristics:
- Min. Rotation speed: 37 tr/min Max.
- Rotation speed: 375 tr/min
- Pallet diameter: 25,4 mm
- Max. torque available per shaft: 25 N.m
- Working length: 218 mm
Temperatures :
- Minimum cooling circuit: -20°C
- Max. heating circuit: 200°C
- Overall dimensions : Width (with mobile unit): 670 mm
- Height (with mobile unit): 1250 mm
- Length (with mobile unit): 1350 mm
- Weight (with mobile unit): 156 kg
