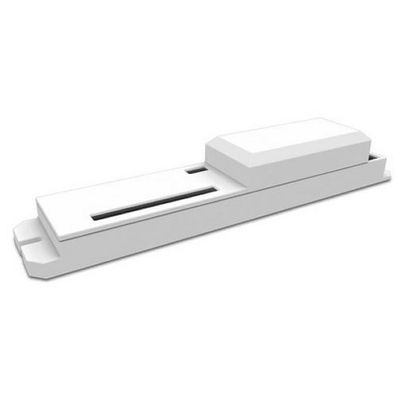

Moteck - Model CF16 -Control Box

Input voltage: 24V DC. Output voltage: 24V DC. Overload protection current: 2.4A max. Power supply provided by the customer. Number of actuators: 1 output port for actuator. Multi-controller connection is possible, and the master controller is used for joint control of all slave controllers in the system. The slave controller can still be operated on its local connected actuators. Duty cycle: 10%, max. 2 min. continuous operation in 20 min. Color: White. Fire alarm signal to open the window or shutters mandatorily. Rain to close the window or shutters. Support wireless remote control, please contact Moteck sales.
