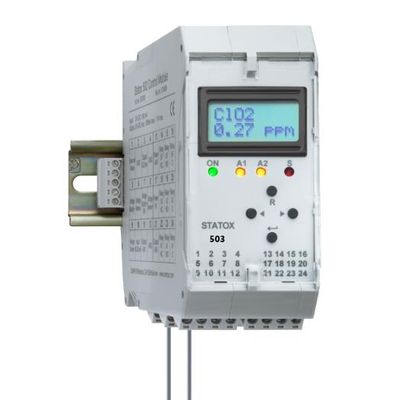

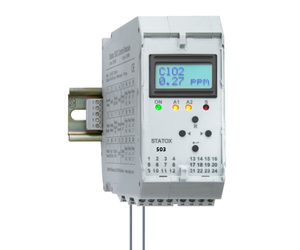

Compur - Model Statox 503 -Control Module Stationary Gas Detectors
The Statox 502 Control Module has been replaced by the even better Control Module Statox 503.
Most popular related searches
- Product name: Statox 503 Control Module for all kinds of gas detectors and other front - ends
- Functional Safety SIL 2 also as stand - alone
- Power supply: 24 +/- 2 VDC max. 200 mA
- Power consumption: max. 5 W
- Operating temperature: – 10°C to + 60°C
- Storage temperature: – 20 °C to + 60°C
- Pressure: – 900 to 1100 hPa
- Humidity: 0 – 99 % r. h. non condensing
- Display: 2 lines, 16 segments
- Housing: Polyamide, IP 20
- Connections: 24 screw terminals, max. 2,5 mm2 diameter in 6 pluggable terminal blocks
- Relays: 2 * Alarm, 1 * system failure
- Relay specs: 250 VAC, 8 A min. load >/= 12 V, 10 mA, contacts silver / nickel
- Dimensions: H: 103 mm, W: 45 mm D: 115 mm
- System failure relay: normally open, active (NO)
- max. Load: 700 Ohm
- Installation: 35 mm DIN Rail
- CE Marking: EN 61326-1:2013
