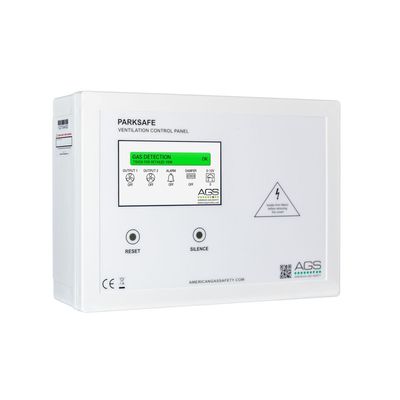

AGS ParkSafe - Control Panel
Gas Detection & Ventilation Control System for Enclosed Garages & Car Parking Facilities
Most popular related searches
ventilation control
gas detection control system
gas detection system
carbon monoxide detector
gas detection
gas detection control
gas detection controller
gas safety
controlled ventilation
gas controller
- Ability to identify up to 16 individual gas detector gas levels and in which monitoring zone the detector is located.
- Built-in connectivity to existing BAS & MODBUS compatibility.
- 0-10VDC output to variable fan speed drives.
- Designed for use with the AGS ParkSafe Nitrogen Dioxide and Carbon Monoxide detectors.
- Touchscreen TFT for controller setup, system status displays of gas levels & outputs.
- Pre-Alarm & Alarm configuration outputs.
- Temperature alarm activates relays if the defined temperature level is exceeded.
- Meets IMC 2018 requirements for parking garages
- Covered by American Gas Safety 3 year warranty
- Display: 4.3” Touch Screen TFT
- Power Input Voltage: 100-120V AC
- Current Consumption: 48W max (fully loaded)
- Internal Fuse: 3.15A
- Operating Temperature: 14-122°F 30-85%RH Non-Condensing
- Audible Alarm Buzzer dB: 65 dB (300mm distance in quiet conditions)
- Maximum Gas Detectors: 16
- Gas Detector Wiring Length: 500 Yards
- Housing Material: Polylac PA-765
- Flame Rating: UL 94
- Approvals: CE, RoHS
- Dimensions (H x W x D) inch: 7.08 x 10 x 3.03”
