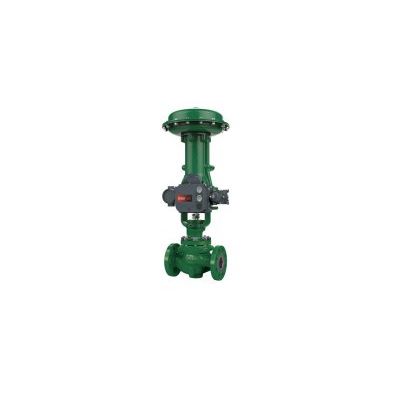

Fisher easy-e - Model ET -Control Valve

SHARE

The Fisher easy-e ET valve is your solution for all general applications with high process temperatures, featuring a balanced plug design and cage-guided trim. Available in globe or angle body, these valves can provide up to Class V or VI shutoff.

Most popular related searches
control valve
process fluid
fugitive emissions
noise control
plug valve
EN standard
angle valve
sealing system
  • Certifications SIL capable, Fugitive Emission, NACE
  • Critical Service Noise Abatement, Cavitation, Steam Condition, Erosive, Low Flow, Corrosive, General Service, Outgassing, Flashing
  • Flow Characteristics Equal percentage, Linear, Special Characterization, Quick Opening
  • Material Carbon Steel, Stainless, Duplex, Alloy
  • Operating Temperature Standard Temperature
  • Pressure Class    PN, ASME
  • Process Connection Type    Flanged, Butt Weld, RTJ, Threaded, Socket Weld
  • Shutoff Class    Class IV (FCI 70-2), Class V (FCI 70-2), Class VI (FCI 70-2)
  • Valve Size NPS 1 through NPS 30
  • Valve Size Standard    NPS, DN
  • Other Configurations    Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
  • ENVIRO-SEAL™ packing systems that provide an improved stem seal to help prevent the loss of process fluid are available. These packing systems feature PTFE or Graphite ULF packing with live-loading for reduced packing maintenance.
  • Controlled compression of standard seat construction protects PTFE disk between metal disk seat and disk retainer. Excellent shutoff is maintained by a backup ring or spring-loading that forces the valve plug seal ring against the cage.
  • Rugged cage guiding provides high valve plug stability, which reduces vibration and mechanical noise.
  • Increased wear resistance of hardened stainless steel trim means longer-lasting service.
  • Valves are available with dimensions specified by EN/DIN standards.
  • Unless otherwise noted, references are to NACE MR0175-2002. Optional materials are available to meet NACE MR0103 and NACE MR0175 / ISO 15156.
