FARMATIC - Conventional Digesters and Combined Storages

It is our business philosophy to supply our customers with a complete hands-free digester solution with a consistently high quality all over the world. Our digesters are supplied including a double membrane gas holder and FARMATIC`s electrical stirrers

FARMATIC digester and biogas storage solutions are supplied in standard sizes or in custom designs according to client preferences.

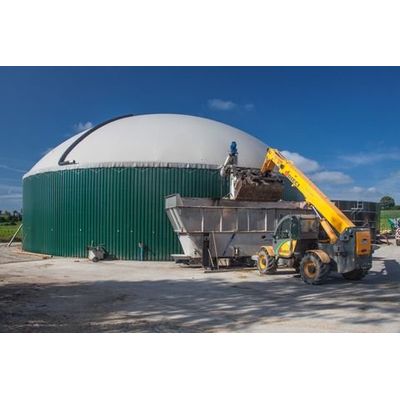

By combining a digester chamber with an integrated gas holder, conventional digester systems are a cost-effective alternative for smaller digesters up to 2,400 m³ and for substrates that can easily be mixed. FARMATIC uses this tank design as post-digester and combined gas and digestate storage in larger turnkey projects.

• one insulated and corrosion-resistant digester tank made from bolted steel panels. The tank wall in touch with biogas is designed in stainless steel or special high quality glass-fused-to-steel due to the aggressive properties of the hydrogen sulphide in the gas.
• one double membrane gas holder with a stabilizing blower and an inspection glass in the outer membrane
• one paddle agitator with slow drive speeds for high mixing performance at low energy consumption.
• additional through-the-wall electric secondary mixer with an external drive
• one ascent ladder with working and inspection platform
• measurement and safety devices such as overpressure safety valves, water level meter and illuminated inspection windows

• concrete foundation
• corrosion-resistant tank wall
• gas holder with stability blower
• insulation
• 1x paddle agitator, 1x mixer
• ascent ladder and platform
• manhole
• water level measurement
• inspection windows (illuminated)
• over/underpressure relief valve
• biogas pipe
• 2x cable ducts
• pipe ducts at desired location
• design for mesophilic operation
• construction and commissioning included

• design for thermophilic operation
• alternative mixer configuration with diagonal agitators
• design and installation of desulphurization by air injection into the digester
• discharge pipe to digester center for complete draining and sluge removal
• Bobcat entry for easier mechanical removal of sediments
• self-cleaning inspection windowss
• design and installation of external digester heating with FARMATIC double helix heat exchangers
• design and installation of internal digester heating (stainless steel) upon request
• supply and installation of sensor equipment for temperature, pH level, gas pressure and gas quality
