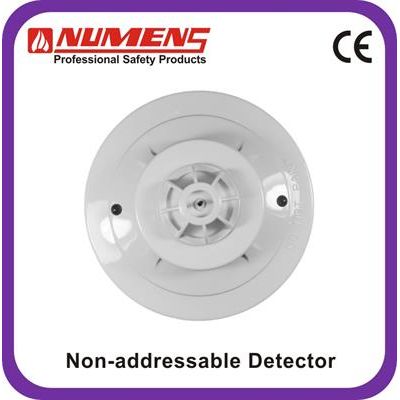

Numens - Model 403-001 -conventional smoke and heat detector

403non-addressable photoelectricsmoke/heat detectors are state-of-the-art detectors suitable for connection to 2-wire or 4-wire non-addressable fire detection control and indicating equipment, or to addressable fire detection control and indicating equipment that can accept non-addressable type detectors . Advanced electronics in conjunction with a photoelectric smoke sensing chamber and an electronic thermistor provide early detection of fire and high immunity against unwanted alarms. The heat sensor provides sensitive rate-of-rise operation or fixed-temperature operation when the response threshold value is exceeded. The 403non-addressable detector range provides fire detection and alarm system designers with an economicalsmoke/heat detector for life safety and property protection applications

Most popular related searches

heat detector

fire alarm system

smoke and heat detector

smoke detection system

fire detection

fire detection system

fire alarm

fire alarm detector

fire protection

fire protection system

· Dual photoelectric smoke and heat sensors to detect either smoke, heat or a combination of the phenomena.

· Ideal for both fast-flaming and slow smouldering fires.

· Surface-mount device (SMD) circuit board design

· High immunity against unwanted alarms

· Stable smoke sensing chamber. No adjustment or replacement required

· Durable heat sensor. No adjustment or replacement required

· Dual LEDs for 360° visibility

· 2-wire and 4-wire models for DC 12 V and DC 24 V operation

· 4-wire model for DC 48 V operation

· 4-wire models available with N/O alarm relay output

· 4-wire models available with auto-reset function

· 2-wire models available with remote LED output

· Connects to zone monitor for use with addressable control and indicating equipment

· Sleek low-profile housing design

· Low maintenance

	403-001	403-002	403-003	403-004	403-005
Operating voltage	DC (10.8 ~ 33) V		DC (10.8 ~ 26.4) V		DC (40 ~ 60) V
Start-up current	≤ 100 µA
Start-up time	≤ 30 s
Quiescent current	≤ 60 µA
Sampling time	≤ 3 s
Alarm response threshold (smoke)	(0.08 ~ 0.15) dB/m
Alarm response threshold (heat)	59 °C static, and rate-of-rise^a
Alarm current (max)	50 mA		30 mA
Alarm condition indicator	Dual red LEDs
Remote LED output current (max)	—	15 mA	—
Alarm output relay	—		SPST. N/O. 1.0 A @ DC 30 V / 0.5 A @ AC 125 V
Reset voltage	≤ 1 V
Reset time	≤ 5 s
Auto reset time	—			(4 ~ 6) s	—
Operating temperature	(-10 ~ +55) °C
Operating humidity	(0 ~ 95) % RH, non-condensing
Storage temperature	(-25 ~ +80) °C
Storage humidity	(0 ~ 98) % RH, non-condensing
Dimensions (excluding contacts)	Φ 99 mm × 51 mm
Ingress protection rating	IP-42
^aDetectors are factory-configured for 30 k/min and comply with EN 54-5 class A1 and class A2.

	EN 54-5 ^{a, e} UL 521 ^{b, e}	EN 54-7 ^{c, e} UL 268 ^{d, e}	CE
403-001	√	√	√
403-002	√	√	√
403-003	√	√	√
403-004	√	√	√
403-005	√	√	√
^a EN 54-5 Fire detection and fire alarm systems. Heat detectors. Point detectors ^b UL 521 Heat detectors for fire protective signaling systems ^c EN 54-7 Fire detection and fire alarm systems. Smoke detectors. Point detectors using scattered light, transmitted light or ionization ^d UL 268 Smoke detectors for fire alarm signaling systems ^eThird-party conformance assessment has not been undertaken.
