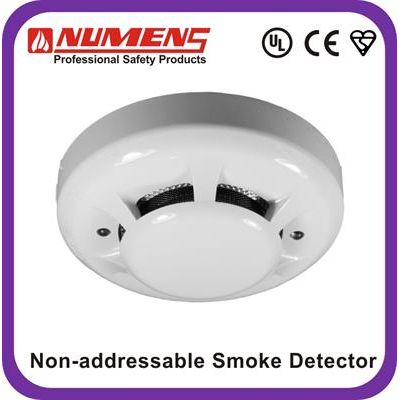

Numens -Â Model SNC-300-SL-U -conventional smoke detector with EN and UL approval for house security
SNC-300-SL non-addressable photoelectric smoke detectors are state-of-the-art detectors suitable for connection to 2-wire non-addressable fire detection control and indicating equipment, or to addressable fire detection control and indicating equipment that can accept non-addressable type detectors. Advanced electronics in conjunction with a photoelectric smoke sensing chamber provide early detection of fire and high immunity against unwanted alarms. The SNC-300-SL non-addressable detector range provides fire detection and alarm system designers with a Standards-compliant economical smoke detector for life safety and property protection applications.· Advanced algorithms provide analogue detection discrimination
· Advanced algorithms provide analogue detection discrimination
· Surface-mount device (SMD) circuit board design
· High immunity against unwanted alarms
· Stable smoke sensing chamber. No adjustment or replacement required
· 2-wire operation
· 2-wire models available with remote LED output
· Connects to zone monitor for use with addressable control and indicating equipment
· Sleek low-profile housing design
· Dual LEDs for 360° visibility
· Low maintenance
|
|
SNC-300-SL |
|
Operating voltage |
DC (10.8 ~ 33) V |
|
Start-up current |
≤ 100 µA |
|
Start-up time |
≤ 30 s |
|
Quiescent current |
≤ 75 µA |
|
Alarm current (max) |
50 mA |
|
Sampling time |
(3 ~ 5) s |
|
Alarm response threshold |
(0.08 ~ 0.15) dB/m |
|
Alarm indicator |
Dual red LEDs |
|
Remote LED output current (max) |
15 mA |
|
Reset voltage |
≤ 1 V |
|
Reset time |
≤ 5 s |
|
Operating temperature |
(-10 ~ +55) °C |
|
Operating humidity |
(0 ~ 95) % RH, non-condensing |
|
Storage temperature |
(-25 ~ +80) °C |
|
Storage humidity |
(0 ~ 98) % RH, non-condensing |
|
Dimensions (excluding contacts) |
Φ 102 mm × 34 mm |
|
Ingress protection rating |
IP-42 |
|
|
EN 54-5 a |
CE |
UL 268 b |
|
SNC-300-S2 |
√ | √ |
— |
| SNC-300-SL | √ | √ |
— |
|
SNC-300-SR |
√ | √ |
— |
| SNC-300-SRR |
— |
√ |
— |
|
SNC-300-SR4 |
— |
√ |
— |
|
SNC-300-S2-U |
— |
— |
√ |
|
SNC-300-SL-U |
— |
— |
√ |
|
SNC-300-SR-U |
— |
— |
√ |
| SNC-300-SA |
— |
— |
√ |
