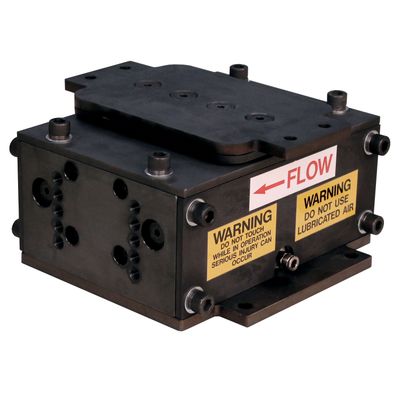

Pneumatic - Model Shuttle Pro-250 -Conveyor Drive for Tray Conveying

The Shuttle Pro-250 Pneumatic Conveyor Drive is engineered for efficient material handling solutions in both single and multiple tray conveying applications. Utilizing dry, filtered air to operate, this compact drive performs optimally between 0 to 80 PSI, handling up to 250 lbs at the maximum pressure, and displaces air at a volume of 0.62 cubic feet per minute at 120 strokes per minute. The endurance of the Shuttle Pro-250 is evident in its design, capable of operating in environments spanning from 0 to 120 degrees Fahrenheit. The drive provides a linear motion capability, advancing at a rate of 12.50 feet per minute. At a total weight of 62.50 lbs, it represents a balance between portability and robust functionality. This unit is ideal for industrial settings demanding reliable pneumatics and consistent functional performance in diverse conditions.
