CoreinspireWave Clip

SHARE

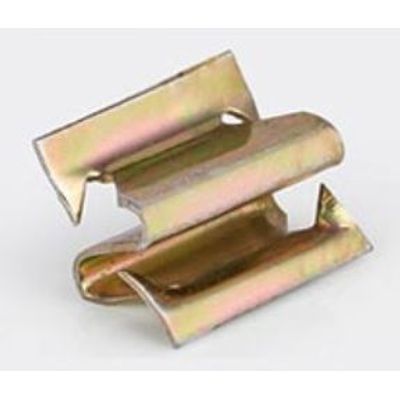

From Tooling & Process point of view, the wave clip design has an Intricate shape with closely placed Four Deep & Closed U Bend Corrugations having close tolerances with lancing at either ends. The geometry & position of the Bends & Lancing are functionally important as they act as piercing & locking points to hold the rubber channels.

Most popular related searches

APPLICATION INDUSTRY

  • The product is used for Automotive Wind Screen & Window Glass Rubber Channels as locking Clip.

MATERIALS IT`S FORM

  • Low Carbon Steel- 1 mm- Strip

PRODUCT DIMENSIONS

  • Overall Dimensions- 21 mmX19 mm X11 mm
