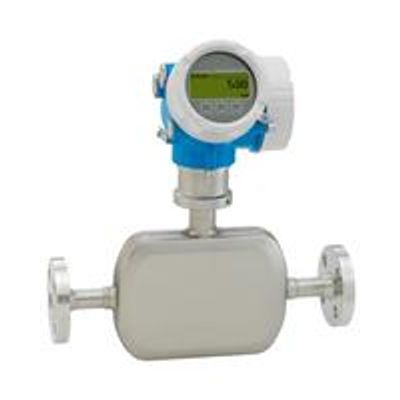

Proline Promass - Model A 200 -Coriolis flowmeter

• Space-saving installation – compact, lightweight sensor

• Highest product quality – self-drainable measuring tube design in all line sizes

• Optimum process safety – resistant to corrosive ambient conditions and internal clogging

• Convenient device wiring – separate connection compartment

• Safe operation – no need to open the device due to display with touch control, background lighting

• Integrated verification – Heartbeat Technology

Density/Concentration

• Measuring principle

  Coriolis

• Product headline

  Genuine loop-powered flowmeter for accurate measurement of lowest flow rates. Suitable for applications with smallest flow quantities in the chemical industry.

• Sensor features

  Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 430.9 bar (6250 psi).

• Transmitter features

  Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing.

• Nominal diameter range

  DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

• Wetted materials

  Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density

• Max. measurement error

  Mass flow (liquid): ±0.1 %
  Volume flow (liquid): ±0.1 %
  Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

• Measuring range

  0 to 450 kg/h (0 to 16.54 lb/min)

• Max. process pressure

  430.9 bar (6250 psi)

• Medium temperature range

  -50 to 205 °C (-58 to 401 °F)

• Ambient temperature range

  -40 to 60 °C (-40 to +140 °F)

• Sensor housing material

  Stainless steel, 1.4404 (316L)

• Transmitter housing material

  Stainless steel, CF-3M (316L, 1.4404)
  AlSi10MG, coated

• Degree of protection

  IP66/67, Type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  4‐20 mA HART (passive)
  4‐20 mA (passive)
  Pulse/frequency/switch output (passive)

• Inputs

  None

• Digital communication

  HART, PROFIBUS PA, FOUNDATION Fieldbus

• Power supply

  DC 18 to 35 V (4‐20 mA HART with/without
  pulse/frequency/switch)
  DC 18 to 30 V (20 mA HART, 4‐20 mA)
  DC 9 to 32 V (PROFIBUS PA)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO, NEPSI

• Product safety

  CE, C-TICK

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

  Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  3-A, cGMP

Liquids

• Measuring principle

  Coriolis

• Product headline

  Genuine loop-powered flowmeter for accurate measurement of lowest flow rates. Suitable for applications with smallest flow quantities in the chemical industry.

• Sensor features

  Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 430.9 bar (6250 psi).

• Transmitter features

  Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing.

• Nominal diameter range

  DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

• Wetted materials

  Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density

• Max. measurement error

  Mass flow (liquid): ±0.1 %
  Volume flow (liquid): ±0.1 %
  Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

• Measuring range

  0 to 450 kg/h (0 to 16.54 lb/min)

• Max. process pressure

  430.9 bar (6250 psi)

• Medium temperature range

  -50 to 205 °C (-58 to 401 °F)

• Ambient temperature range

  -40 to 60 °C (-40 to +140 °F)

• Sensor housing material

  Stainless steel, 1.4404 (316L)

• Transmitter housing material

  Stainless steel, CF-3M (316L, 1.4404)
  AlSi10MG, coated

• Degree of protection

  IP66/67, Type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  4‐20 mA HART (passive)
  4‐20 mA (passive)
  Pulse/frequency/switch output (passive)

• Inputs

  None

• Digital communication

  HART, PROFIBUS PA, FOUNDATION Fieldbus

• Power supply

  DC 18 to 35 V (4‐20 mA HART with/without
  pulse/frequency/switch)
  DC 18 to 30 V (20 mA HART, 4‐20 mA)
  DC 9 to 32 V (PROFIBUS PA)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO, NEPSI

• Product safety

  CE, C-TICK

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

  Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

• Pressure approvals and certificates

  CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  3-A, cGMP

Gas

• Measuring principle

  Coriolis

• Product headline

  Genuine loop-powered flowmeter for accurate measurement of lowest flow rates. Suitable for applications with smallest flow quantities in the chemical industry.

• Sensor features

  Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 430.9 bar (6250 psi).

• Transmitter features

  Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing.

• Nominal diameter range

  DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

• Wetted materials

  Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density

• Max. measurement error

  Mass flow (liquid): ±0.1 %
  Volume flow (liquid): ±0.1 %
  Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

• Measuring range

  0 to 450 kg/h (0 to 16.54 lb/min)

• Max. process pressure

  430.9 bar (6250 psi)

• Medium temperature range

  -50 to 205 °C (-58 to 401 °F)

• Ambient temperature range

  -40 to 60 °C (-40 to +140 °F)

• Sensor housing material

  Stainless steel, 1.4404 (316L)

• Transmitter housing material

  Stainless steel, CF-3M (316L, 1.4404)
  AlSi10MG, coated

• Degree of protection

  IP66/67, Type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  4‐20 mA HART (passive)
  4‐20 mA (passive)
  Pulse/frequency/switch output (passive)

• Inputs

  None

• Digital communication

  HART, PROFIBUS PA, FOUNDATION Fieldbus

• Power supply

  DC 18 to 35 V (4‐20 mA HART with/without
  pulse/frequency/switch)
  DC 18 to 30 V (20 mA HART, 4‐20 mA)
  DC 9 to 32 V (PROFIBUS PA)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO, NEPSI

• Product safety

  CE, C-TICK

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

  Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

• Pressure approvals and certificates

  CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  3-A, cGMP
