NIVUS - Model CS2-V1 -Correlation Pipe Flow Sensor

• Very high accuracy by means of ultrasonic cross correlation method
• Interference-free connection over long distances through digital signal transmission
• Cables can be extended without any problems using standard cables
• Absolutely stable zero point and drift-free
• Measurement in heavily polluted and abrasive media
• Easy installation without additional constructions and perfectly matched mounting accessories
• Installation under process conditions possible
• Particularly suitable for pipe sections starting at 1000 mm diameter

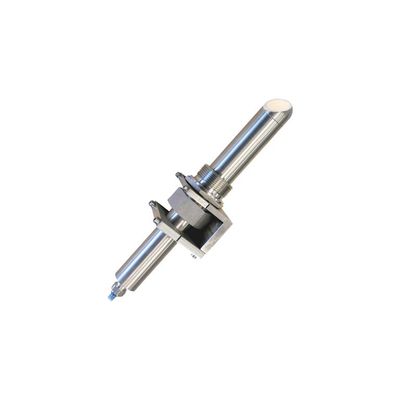

CS2 flow velocity sensors are suitable for continuous measurement of slight to heavily polluted media. The pipe-shaped sensors are designed for installation in pipes from the outside using a nozzle. Combined with transmitter types such as NivuFlow 750 and an external level measurement the result is a complete flow measurement system.

• Channel networks: billing measurement places, flow measurement in large pipe sections
• Wastewater treatment plants: intake, discharge, activated sludge tank intakes, return sludge, recirculation, surplus sludge, digester discharge and flocculant dosage
• Industrial wastewater networks
• and many more

General

• Measurement principle:
• Ultrasonic Cross Correlation with digital pattern detection (flow velocity)
• Ultrasonic transit time (level measurement)
• Zero point drift: absolutely stable zero point
• Sensor types: v-sensor with T-compensation
• Protection: IP 68
• Ex-Approval:
• II 2 G Ex ib IIB T4 Gb (ATEX)
• Ex ib IIB T4 Gb (IECEX)
• Operating temperature:
• -20 °C to +50 °C
• -20 °C to +40 °C if using the sensors in Ex Zone 1
• Storage temperature: -30 °C to +70 °C
• Operating pressure: max. 4 bar (for combi sensors with pressure measuring cell max.1 bar)
• Cable lengths: 10/15/20/30/50/100 m pre-configured, can be extended upon request
• Cable types: LiYC11Y 2 x 1,5 + 1 x 2 x 0,34 PA 1,5/2,5
• Outside cable diameter: 8.4 mm ±0.25 mm
• Sensor connection: Cable end pre-configured for connection to OCM CF
• Medium-contacting materials:
• Polyurethane, stainless steel 1.4571, PPO GF30, PTFE, PA6 GF30
• Optional sensor resistant to chemicals made of PEEK, sleeve made of Hastelloy C-276; cable with FEP coating
• Construction:
• Wedge sensor for installation on channel bottom or channel wall
• Pipe sensor for installation in pipes with sensor screw joint and retaining element
• Measurement uncertainty: for 0.05≤|V|≤0.5 m/s: E_v=0.5/|V| [%] for |V|>0,5 m/s: E_v=1 %
