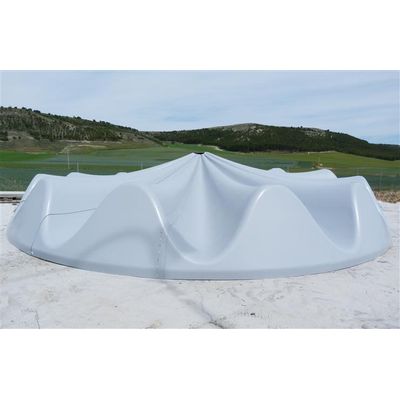

Toro Equipment - Model Hypar and Flat -Covers for W-Tank Bolted Storage and Settling Tank
Roof components in GRP. Fastening brackets for attachment to tank. Screws - washers - nuts. Structural components. Assembly instructions. Technical brochure and specifications. Compliance plan, fasteners and seals.
Types of flat cover fastening:
- Standard, cover screwed to tank. Seamless bolted joint.
- Seal between joints and fastening to tank.
- 5-20 mbar pressure, recommended for digester tanks.
- Quotations for roofs subject to client specifications, load to be supported, installation of stirrers, strainers, walkways and other project components.
- We supply tarpaulin and mesh covers for special purposes.
The plates are manufactured using the flex molding process that allows obtaining reinforced plastic pieces with a high content of fiberglass positioned in the direction of stress, thus increasing their mechanical resistance.
This manufacturing process is environmentally friendly because it eliminates emissions and waste.
- Storage tank
- Aerobic and anaerobic digesters
- Clarifiers
- Drinking water (NSF certificate)
- Storage of fire water
W-Tank tanks, decanters and covers are manufactured in the standard color LUMINOUS GRAY RAL7035. As optional in 3 colors, both internally and externally.
Optionally, we can manufacture any color from the RAL chart upon request.
W-Tank tanks, decanters and covers are manufactured in the standard color LUMINOUS GRAY RAL7035. As optional in 3 colors, both internally and externally.
Optionally, we can manufacture any color from the RAL chart upon request.
- Industrial wastewater
- Urban wastewater
- Drinking water
- Feeding
- Biogas
- Desalination
- Chemical industry
