ConeTec
ConeTec - CPT Rigs
FromConeTec

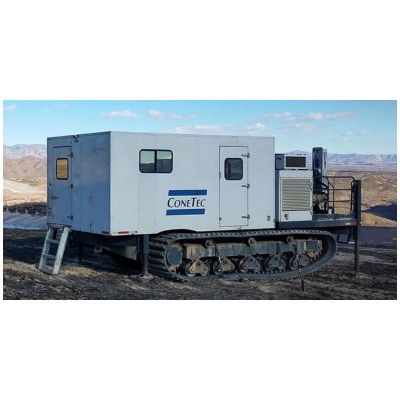

ConeTec CPT rigs are capable of accessing urban centers, remote sites, mine tailings, and active construction areas. Built between 18 and 35 tons, on tracks and on trucks, these are the hardest pushing rigs in the industry. Advanced hydraulic systems ensure penetration rates and CPT quality are maintained, while safety and efficiency are maximized.
Most popular related searches
cone penetration test system
vane shear testing
vane shear test
cone penetration test
direct push
seismic cone penetration test
decontamination facility
mining tailings
vapor sampling
geotechnical service
- 18-35 ton thrust capacity
- 4 point leveling jacks
- On board decon facilities
- Stainless steel laboratory interiors
- Onboard air and 110 V electricity
- Rear view cameras
- CPT monitoring cameras
- Integrated seismic beams
- Positive air shut offs
- Integrated auger and grouting capabilities (some models)
- Tracked rigs 3-6 psi ground pressure depending on the rig
- Unprecedented penetration capabilities - max to date: 175 m or qc = 120 MPa
- Clean, dry, and warm working space
- No anchoring required
- Excellent production rates (up to 300 m / day)
- CPT engineer and technician teams
- Environmental and geotechnical services
- Economical - less expensive than drilling
- Cone Penetration Testing
- Seismic CPT Testing (Vs & Vp)
- RCPTu, UVIF, UVOST, HPT, GCPTu
- Vane Shear Testing (EVST)
- DMT / SDMT Testing
- Push-in Piezometers
- Flow Penetrometers
- Direct Push Soil, Vapor Sampling, Water Sampling
- Direct Push Well Installations
