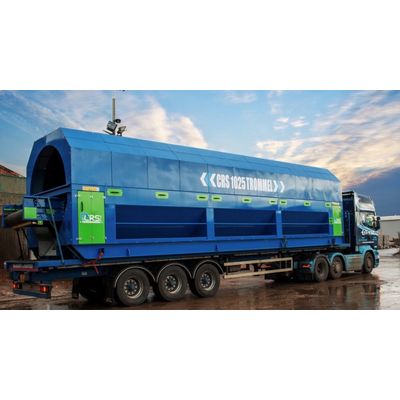

CRS - Model CRS-1025 -Heavy Duty Static Trommel Screens
FromCRS NI LTD
Our CRS heavy duty Trommels are designed, manufactured and installed for all applications and can be integrated into new or existing plants.Most popular related searches
emergency stop
trommel screener
trommel screen
static screening
static screen
conveyor screen
fine screen
drum screen
fine screening
- Heavy duty welded construction
- Specially designed composite chassis, engineered from Universal Beam
- Drum diameter to suit customer requirements
- Total screening length ranging from 4m- 12m
- Trommel drum is manufactured from heavy duty plate steel with parallel flange channel for extra strength
- Bolt in heavy duty 6-12mm punch plate for easy changing with staggered patterned aperture for increased strength (aperture to customer requirements)
- 4 No. Wheels independently driven by Nord Slip on gear motor drive
- Variable speed control
- High density polyurethane drive wheels
- High density polyurethane retaining wheel
- SKF bearings throughout
- Full guards with emergency stops
- Various lifting bars on drum to provide aggressive screening action
- Walkways & covers as standard
- Direct Hopper Feeder
- Robust side bay walls and rear push walls to withstand the heaviest of applications
- Brushes
- Low level feeder via incline conveyor to trommel
- Heavy duty steel or concrete bay walls
- Transfer fines conveyor to secondary screen
