Custom Sensors & Technology (CST)

CSTCross Flow Cell

SHARE

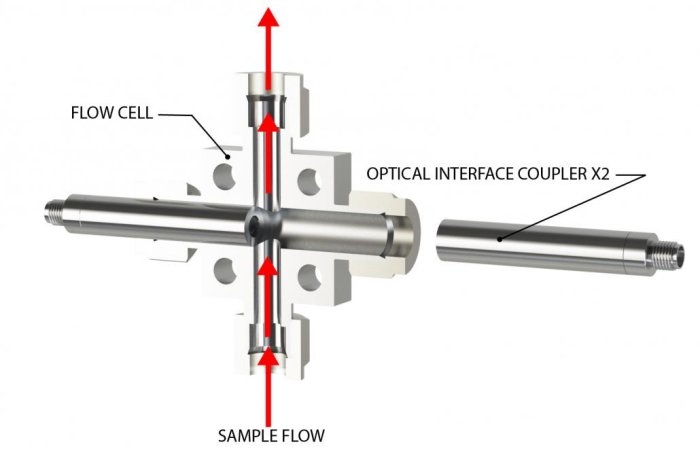

We carry both ?”  and ½” cross flow cells with adjustable path lengths in a variety of construction materials (316 SS, Titanium, Hastelloy C-276, or another material per customer specification). The spectral properties of a sample can be measured when used in conjunction with our Optical Interface Couplers (OICs) and our PX2 photometer via SMA-905 connections.

Most popular related searches

?” Cross Flow Cell – Part #:  3001-AB-CDE

  • Path Length: Adjustable, 0.1 – 10.0 mm
  • Body Material: 316 Stainless Steel (standard)
  • Pressure Rating: 2,000 psi

½” Cross Flow Cell – Part #:  3002-AB-CDE

  • Path Length: Adjustable,  0.1 – 1.5 cm
  • Body Material: 316 Stainless Steel (standard)
  • Pressure Rating: 2,000 psi
