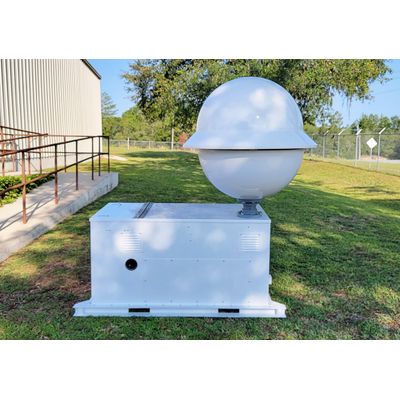

F&J - Model UHV600V.2 Series 15 H.P. -CTBTO Ultra High Volume Air Sampler
The F&J Ultra High Volume Air Sampling System incorporates a 46 cm x 57 cm filter holder with a heavy duty centrifugal blower, automatic flow control and the F&J Global Air Sampling System flow measurement electronics. The system is mounted onto a heavy duty metal skid with a modular design to facilitate servicing of individual system components. The large dimension filter holder is protected from precipitation by a hemispherical rain shield. Flow rates as high as 800 CFM (1400 m3/hr) are achievable depending upon the air flow resistance of the filter media. The maximum flow rate with different types of filter media will vary and may be less than the flow sensor top of range value. Flow control is achieved via a variable frequency drive system.Most popular related searches
high volume air sampling
air sampling
air sampling system
variable frequency drive system
variable frequency drive
high volume sampling
flow monitoring system
flow control
centrifugal blower
flow monitoring
- Flow Rates up to 800 CFM (1400m3/hr)
- Centrifugal Vacuum Blower; 15 H.P.
- Three phase 208/230 VAC or 415/480 VAC
- Multiple Operator Selectable Options
- Engineering Units
- Reference Temperature (T) and Pressure (P)
- Continuous or Periodic Operation Modes
- Volumetric or Mass Flow
- Automatic Shut off on Time or Volume
- Multi gas selection
- On-board data storage
- Vacuum Fluorescent Display (4×24)
- Four button keypad
- Dual RS232* or one USB port and one RS232 port
- State-of-the-art electronics
- Automatic flow control
- Accuracy ±3.0% or greater
- Data Acquisition Program
* The inlet RS232 port is used for the Iodine Sampler Option, or the Weather Station Option
- Motor: 15 H.P.
- Vacuum System: Centrifugal Blower
- Maximum Vacuum: 80 inches of water @ 600 CFM (1000 m3/hr)
- Power Requirements: 208/230 V, 50/60 Hz, 3 Phase; 415/480 V, 50/60 Hz, 3 Phase
- Maximum Flow Rate: 800 CFM (~1400 m3/hr)*
- Typical Flow Rate Range: 300 – 800 CFM (510 – 1360)*
- Temperature Operating Range: -20°C to 50°C (-7° to -122°F)
- Filter Paper Active Area: ~ 357 in2 (2303 cm2)
- Flow Control Mechanism: Variable Frequency Drive
- Flow Measurement System: Precision Machined DP Sensor
- Flow Computer Design: Global Air Sampling System
- IP Protection Class: IP55
- Option: Radioiodine Collection System (P/N: DF-UHV-3.2 or DF-UHV-3.1)
* Dependent upon filter media air flow resistance
