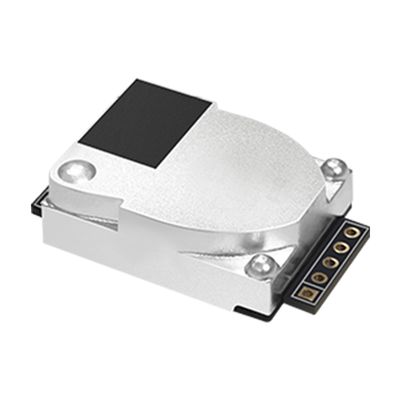

Cubic - Model CM1106H-NS -High Accuracy NDIR Carbon Dioxide (CO2) Sensor

Infrared single beam NDIR carbon dioxide CO2 sensor CM1106H-NS can be used to detect CO2 concentration of indoor air by adopting advanced non-dispersive infrared technology (NDIR). It is widely used in ventilation system, air conditioner, air purifier, IAQ monitor, agriculture, plant cultivation and cold-chain, etc.

• NDIR technology with independent intellectual property
• Temperature calibration within whole measurement range
• Long life span, auto-calibration, maintenance free
• Small size and compact structure, easy to install

• Measurement range: PWM: 0-2000ppm
• UART: 0-10000ppm (Note 1)
• Working temperature: -10°C ~ 50°C
• Working humidity: 0-95%RH (non-condensing)
• Storage temperature: -30°C ~ 70°C
• Storage humidity: 0-95%RH (non-condensing)
• Accuracy: ± (30ppm+3% of reading) @ -10°C -50°C ,0-85%RH , URT/PWM 0-2000PPM(Note 2 and 3)
• Sampling frequency: 1s
• Time to first reading: T90 < 30s
• Power supply: DC 4.5V~5.5V
• Ripple wave: <50mV
• Working current: <50mA
• Dimensions: 33x19.7x8.9mm (pin is not included)
• Weight: 5g
• Signal output: UART_TTL,PWM liner output
• Life span: ≥15 years
• Maintenance: Maintenance-free for normal indoor application with Auto-calibration

Note 1：Sensor is designed to measure in the range 0~2000ppm (PWM),0-10000ppm (UART) with specified in the table accuracy. Nevertheless exposure to concentrations below 400ppm may result in incorrect operation of ABC algorithm and shall be avoided for model with ABC ON.
Note 2: In normal IAQ applications, accuracy is defined with -10°C -50°C ,0-85%RH and after minimum two (2) ABC periods of continuous operation with ABC on. Some industrial applications do require maintenance. Contact Cubic for further information.
Note 3: Specification is referenced to certified calibration mixtures. Uncertainty of calibration gas mixtures (±2% currently) is to be added to the specified accuracy for absolute measurement.
* The above features and specifications are preliminary version. Some contents might be changed before the product is mass-production.
To get more technical information, please contact info@gassensor.com.cn.

• Fresh air system
• Fresh air system controller
• Air quality monitor
• Household & Central air conditioner
